Key Features

  • H.265/H.264 Compression Technology
  • 32-CH Recording, 32-CH Display
  • 8 Hot-Swappable HDD Bays
  • Support RAID 0/1/5/6/10 Storage
  • Redundant Power
  • Dual Lan Giga Network Ports
  • Multiple Fisheye Dewarp Support
  • VIVOTEK VAST 2 Inside
  • Smart Search II: People/Vehicle Search
  • Analytics Integration: Smart VCA, Parking Violation/Restricted Zone Detection
  • Cybersecurity Management Solution
  • Comprehensive VIVOTEK Solution Support

  • System Structure

      Smart Search II – People/Vehicle Search

      Users can quickly sort through large amounts of footage to find people and/or vehicle related motion in video recordings via VAST 2. People and vehicles appearing in the user-defined area can serve as search criteria. This provides for quicker search times and the video clips can then be exported.

      Analytics Integration - Parking Violation/Restricted Zone Detection

      Integrate our latest video content analytics technology from VIVOTEK cameras: Parking Violation Detection and Restricted Zone Detection. VAST 2 is able to support the display of these new detection rules in liveview with bounding boxes on detected people/vehicles. Both new rules can be used for instant alarm notifications in real time and event-search functions, offering refined analytics for people and vehicle detection.

      Comprehensive VIVOTEK Solution Support

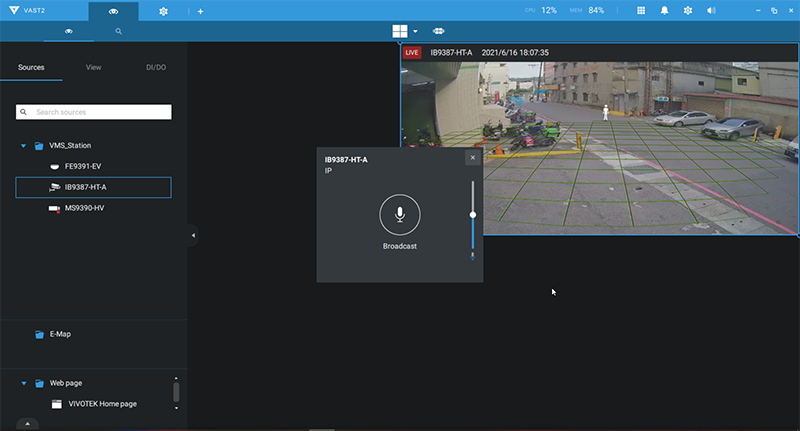

      Users can now manage their properties with our latest solutions, License Plate Solution and Network Audio Solution, via VAST 2.It supports linking license plate information with live streaming and recordings from VIVOTEK LPR cameras (e.g., IB9387-LPR). Or set specific video analytic detection events from integrated cameras and synchronize VIVOTEK audio devices (e.g., AU-001). Easily centraliz these devices, whether you want to search/analyze license plate historical data, display the number of data in line graphs, export search results, or display live streaming video. By meeting all your requirements, VAST 2 provides an intelligent surveillance solution that helps reduce management costs.

      Rich Integration of 3rd Party Access Control Solutions

      VAST 2 now integrates access control solutions with 3rd party partners, Chiyu, SOYAL, and ZKTeco. Users can choose from any of our partners as needed. These access control solutions provide simple and effective operations via the Data Magnet function for complete protection in highly secure and sensitive scenarios. Events can then be displayed and annotated along with related video clips to manage detailed visitor data easily.

      Cybersecurity Management Solution

      Integrate cybersecurity attack events from VIVOTEK cameras and NVR to VAST 2 alarm management. In addition to alarm action and notification, VAST 2 becomes the central management site to recognize attack trends and status, as well as acquire attack information.

      Embedded Browser on VAST 2 Display

      The web browser can be embedded on a VAST 2 viewing cell to show website information or change the settings of other devices directly via VAST 2 instead of opening the application in another window. You can customize the layout of the display on the screen as required.

      Data Magnet

      Data Magnet enables VIVOTEK’s License Plate Recognition cameras or third-party data sources to integrate into VAST 2, providing rapid access to recording data and supporting simultaneous data display during live streaming. Additionally, users can also utilize Data Magnet’s alarm management to customize alarm triggering rules and actions, enabling users to receive alarm notifications immediately upon preset alarm criteria triggering.

      Scalable License of VAST 2

      VAST 2 equips scalable functions such as Data Magnet, TCP Message, and Extension functions, while also providing the licenses for purchase. Now users can import these advanced features licenses on the NR-v2/NS series NVR models (Image version is v2.1.0.1 or later), offering more flexibility to deploy/manage your devices as needed.

    NDAA Compliance

  • NR9581-v2
  • OS
  • Embedded Windows 10
  • Watchdog
  • Hardware + Software
  • Power Restoration
  • System Restart Automatically after Power Recovery
  • Local Display
    LiveView Display
  • 32 Channels
  • Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8
  • Panorama: 1P+6, 2P, 2P+3, 3P
  • Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8
  • Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V
  • Single layout display, full screen display, custom layout, layout rotation
  • Video Output
  • HDMI x1, Display Port x1
  • Display Resolution
  • HDMI: 4096x2160
  • DP: 4096x2304
  • Dual Monitor
  • Supported
  • Camera Position
  • Change the viewcell position on the Live View screens
  • Stream Application
  • Stream Selection & Auto Stream Size
  • Monitor Enhancement
  • E-Map Embedded, Drag & Drop, Remote I/O Control, PiP (Digital Zoom), Instant Playback
  • Video Display Mode (Aspect Ratio & Camera Information), Metadata Display (VCA, POS and Data Magnet)
  • Fisheye Dewarp
  • 1O, 1P, 1R, 1O3R, 4R, 2P, 4R Pro, 1O8R and Fisheye Auto-Pan
  • PTZ/ePTZ Operation
  • Direction Control, Home, Zoom, Focus, Isis, Preset, Patrol (Group), Tracking, Pan, Stop, Speed, Wiper Blade Control
  • Video
    Video Format
  • MJPEG, MPEG4, H.264 AVC, H.264 SVC, H.265
  • Graphic Decoder
  • Software decoding
  • Decoding Resolution
  • Up to 8192x8192
  • Decoding Capability
  • H.264: 1920x1080 @ 540 fps
  • H.265: 1920x1080 @ 270 fps
  • Audio
    Audio Format
  • G.711, G.726, AMR, AAC
  • Audio In/Out
  • Microphone audio jack Input x1
  • 3.5 Line input audio jack x1
  • 3.5 Line output audio jack x1
  • 2-way Audio
  • Supported
  • Record
    Recording Time (sec.)
  • Pre-Record: 3-15
  • Post-Record: 10-60
  • Recording Stream
  • Single
  • Recording Throughput
  • 512 Mbps
  • Recording Mode
  • Continuous, Event, Customized Schedule, Activity Adaptive Streaming
  • Recording Setting
  • Recycling time depends on the remaining storage space or the set number of days
  • Watermark
  • Supported
  • Seamless Recording
  • Supported
  • Storage & Backup
    HDD Devices
  • Hot-Swappable Tray x8
  • *HDD is purchased by separately.
    HDD Max. Capacity *Please refer to recommended HDD list on the VIVOTEK website.
  • RAID 0, 1, 5, 6, 10
  • Disk Management
  • Create, Format and Remove Disk
  • Video Clip Export
  • USB Dongle (FAT Format)
  • NAS (SMB & CIFS)
  • Schedule Backup
  • NAS (SMB & CIFS)
  • Playback
    Playback Display
  • 32 Channels
  • (the max. number of monitors supported depends on the decoding capability of your system)
  • Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8
  • Panorama: 1P+6, 2P, 2P+3, 3P
  • Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8
  • Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V
  • Single layout display, full screen display, custom layout, layout rotation
  • Playback Control
  • Play, rewind, pause, stop, next/previous video start, next/previous frame, 1/8X ~ 64X speed control, bookmark
  • Video Search
  • Calendar, Event, Alarm, Bookmark, Thumbnail, Smart Search II, Transaction (POS), Data Magnet, Log
  • Snapshot
  • BMP & JPEG
  • Video Clip Export
  • 3GP & EXE
  • Network
  • 10/100/1000Mbps Ethernet (RJ-45) x2
  • Video Throughput for Remote Client
  • 400 Mbps
  • Protocols
  • Alarm Management
    Alarm Period (sec.)
  • Max. 30
  • Alarm Filter
  • Time, Trigger Type (Camera/Substation/System), Status, Name, Trigger Source
  • Alarm Setting
  • Realtime System Notification
  • Alarm Result Display by List or Thumbnail
  • Schedule Type
  • Continuous, schedule, manual
  • Camera Event
  • General:
    • Motion detection, Camera DI, Camera DO, IR (Infrared), PIR (Passive infrared), Tampering detection, Temperature
    • Camera disconnected, Recording error, Stop recording, Video loss (Video server only), SD card life expectancy detection, Audio detection, Shock detection
  • Smart VCA:
    • Line crossing detection, Intrusion detection, Loitering detection, Face detection, Missing object detection
    • Unattended object detection, Crowd detection, Runninge Detection
  • Trend Micro IoT Security:
    • Brute force attack, Cyberattack, Quarantine event
  • NV Series NVR:
    • Abnormal G-sensor Motion, Speeding, GPS Disconnected
  • ND Series NVR:
    • Fan Status, Network Disconnected, Storage Failure, Storage Full, Number of remaining people, Brute force attack, Cyberattack, Quarantine event
  • NR Series NVR:
    • Network Disconnected, Storage Failure, Storage Full
    External Devices Event
  • DI/O (with I/O Box), TCP Message
  • Action
  • Start to record videos, Set DO status, Go to camera presets, Send HTTP requests, Send live streaming
  • Send email with snapshot of assigned camera(s), Go to E-Map, Sound the alarm and Add bookmark
  • Alarm State for Management
  • New, In Progress, False Alarm and Close
  • Alarm Result Export
  • .csv File
  • eMap
  • Import picture & folder
  • Device
  • Camera, external DI/O
  • Marked
  • Add, remove, direction control, PTZ control, FOV control, live view & playback
  • Event Notification
  • One or More Live Streaming
  • External Interface
  • USB 3.0 Type-A x3
  • USB 3.0 Type-C X1
  • Audio
  • Microphone audio jack Input x1
  • 3.5 Line input audio jack x1
  • 3.5 Line output audio jack x1
  • System
    POS Integration
  • Supported
  • UPS Integration
  • Supported
  • Camera Integration
  • ONVIF Profile S
  • I/O Box Integration
  • Advantech ADAM-6000 Series
  • MOXA ioLogik E1210, E1211 and E1212
  • User Management
  • Authentication: Basic Account / Windows AD Account
  • User Account: 1024
  • User Level: Administrator / Customized User
  • Log
  • Operation, system and event log
  • Date & Time
  • Sync server
  • Advanced Features
    VCA Counting Solution
  • Supported
  • LPR Solution
  • Supported
  • VCA Event Search
  • Smart VCA
  • Smart Search
  • Smart Search I & Smart Search II
  • Cybersecurity Management
  • Supported
  • Failover
  • Supported
  • Remote Client
    Software AP
  • Shepherd, VAST 2
  • Mobile/Tablet App
  • iViewer (Android & iOS)
  • Web Browser
  • Internet Explorer 9 (32 bit) or above
  • General
    Power Input
  • Redundant power 100~220V AC
  • Power Consumption
  • Max. 650 W
  • Redundant Power
  • Supported
  • 80 Plus Certified
  • Platinum
  • Dimensions
  • 89 (H) x 437 (W) x 647 (D) mm
  • Weight
  • 15.8 kg (Without HDD)
  • Operating Temperature
  • 5°C ~ 35°C (41°F ~ 95°F)
  • Humidity
  • 0 ~ 95%
  • Safety Certifications
  • CE, FCC, VCCI, C-Tick, UL, CB
  • Warranty
  • 36 months
