IT9389-H-v2

Overview

VIVOTEK’s IT9389-H-v2 is an H.265 outdoor turret network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560 x 1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IT9389-H-v2 is capable of capturing high-quality imagery in both high contrast and low light environments.

The IT9389-H-v2 offers a fixed-focal lens of 2.8mm and is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IT9389-H-v2 is encased in IP66 and IK08 housing.

By employing VIVOTEK's Smart Stream III technology and H.265 compression, the IT9389-H-v2 is able to reduce bandwidth up to 90%* while maintaining supreme image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.

* Depending on scenes

Key Features

30 fps @ 2560x1920, 60 fps @ 1920x1080

WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes

Built-in IR illuminators, Effective up to 30 meters

Smart IR Technology to Avoid Overexposure

Trend Micro IoT Security

Weather-proof IP66-rated and Vandal-proof IK08-rated Housing

2.8mm Fixed Lens

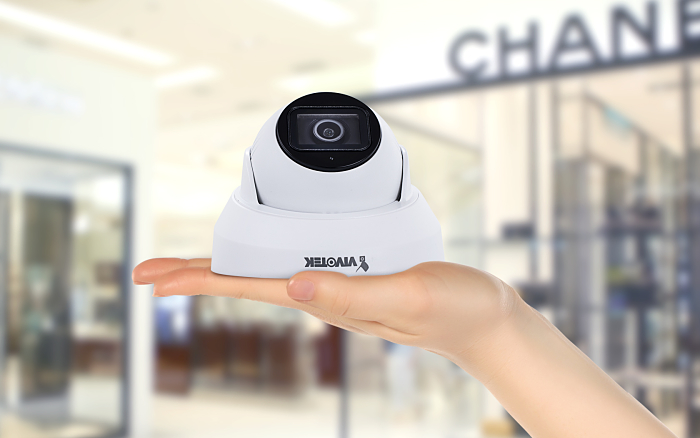

Easy Installation and Compact Size

NDAA Compliance

System Information
Model	IT9389-H-v2
CPU	Multimedia SoC (System-on-Chip)
Flash	8 GB
RAM	1 GB
Camera Features
Image sensor	1/2.7" progressive CMOS
Max. Resolution	2560x1920 (5MP)
Lens Type	Fixed-focal
Focal Length	f = 2.8 mm
Aperture	F2.0
Iris Type	Fixed-iris
Field of View	103° (Horizontal) 76° (Vertical) 134° (Diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
WDR Technology	WDR Pro
Day/Night	Yes
Removable IR-cut Filter	Yes
IR Illuminators	Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination	0.06 lux @ F2.0 (Color) 0.01 lux @ F2.0 (B/W)) 0 lux with IR illumination on
Pan range	359°
Tilt range	75°
Rotation range	180°
Pan/ Tilt/ Zoom Functionalities	ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage	Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
Video
Video Compression	H.265, H.264, MJPEG
Maximum Frame Rate	30 fps @ 2560x1920 60 fps @ 1920x1080
Maximum Streams	3 video streams (Up to 8 configurable profiles)
S/N Ratio	55 dB
Dynamic Range	120 dB
Video Streaming	Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings	General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings Illuminators: illuminators, anti-overexposure Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur) Exposure: BLC, HLC, exposure control(exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Privacy mask, Scheduled profile settings
Audio
Audio Capability	One-way Audio
Audio Compression	G.711 G.726
Audio Interface	Built-in microphone
Effective Range	5 meters
Network
Users	Live viewing for up to 10 clients
Security	Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event) User access log, user account management
Protocols	802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface	10 Base-T/100 Base-TX Ethernet (RJ-45) * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF	Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Smart Motion Detection	Five-window video motion detection, human detection, time filter (Without bounding box)
Smart VCA	Intrusion detection, loitering detection, line crossing detection, unattended object detection Missing object detection, face detection, crowd detection, running detection
VADP Package	Deep Learning VCA (Smart Motion Detection, Smart VCA), Trend Micro IoT Security (3-year free trial) License required. Free trial license is not supported.
Alarm and Event
Event Trigger	Audio detection, camera tampering detection, manual trigger, motion detection Periodical trigger, recording notification, SD card life expectancy, shock detection, system boot Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
Event Action	Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card
General
Connectors	RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator	System power and status indicator
Power input	IEEE 802.3af PoE Class 0
Power consumption	Max. 7.4 W (IR on) Max. 6.4 W (IR off)

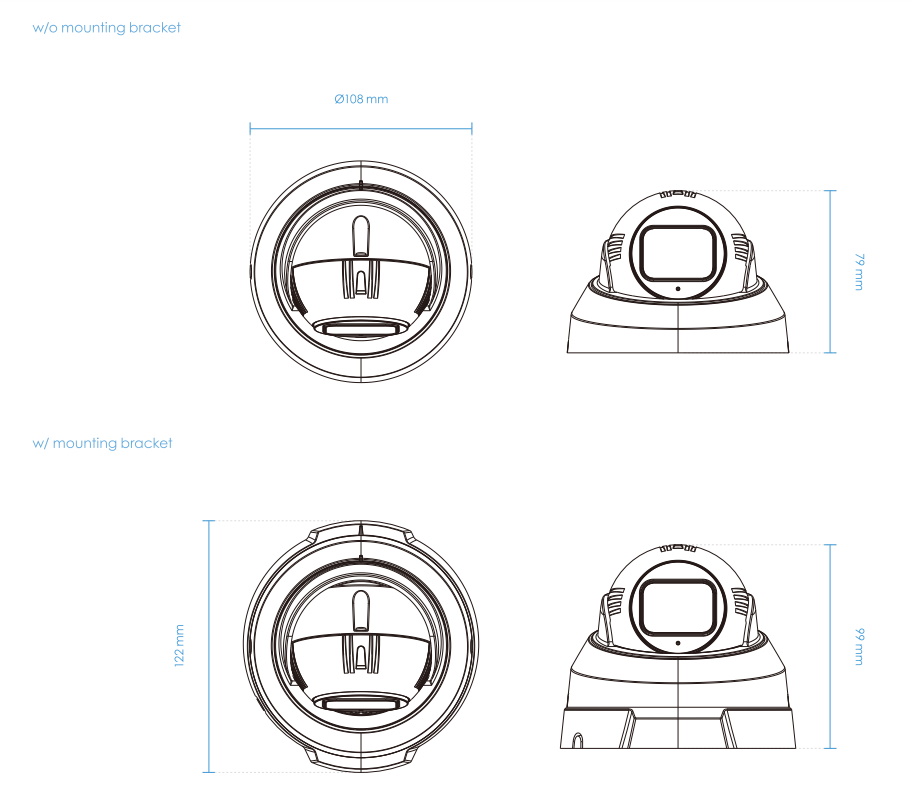

Dimensions	Ø 122 x 99 mm (w/ mounting bracket) Ø 108 x 79 mm (w/o mounting bracket)
Weight	392 g (w/ mounting bracket) 332 g (w/o mounting bracket)
Certifications	EMC: CE (EN55032, EN55024 Class A, EN50121-4 ), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A) Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment: IK08 (IEC 62262), IP66 (IEC 60529) IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating Temperature	Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F) Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
Humidity	98% RH (non-condensing)
Warranty	36 Months
System Requirements
Operating System	Microsoft Windows 10/8/7 Mac 10.12 (Chrome only)
Web Browser	Chrome 58.0 or above Internet Explorer 10/11
Other Players	VLC: 1.1.11 or above
Included Accessories
Packing Contents	Quick installation guide, alignment sticker, screw pack
