This model is in limited supply. Please check regional sales for availability.




Key Features

  • H.265 Compression Technology
  • 4x 5MP Independent Sensors, Adjustable Views
  • 30 fps (2688x1920) per Sensor
  • Smart Stream III to Optimize Bandwidth Efficiency
  • WDR Pro (120 dB) for Optimal Image Quality in High Contrast Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Trend Micro IoT Security
  • Built-in IR Illuminators, Effective up to 30 Meters Radius
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Built-in Microphone


  • High Quality Unlimited Coverage

    Featuring four independent 5MP CMOS Sensors with IR illuminators, the MA9322-EHTV network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm motorized focus lens and 3-axis design along a circular track to enable full 360° coverage. The MA9322-EHTV is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments.



    360° Extreme Low Light Visibility

    By adding IR illumination up to 30 meters, no matter day or night, light or dark, it always provides complete video security. Further, in addition to SNV technology, areas of low light visibility are no longer an issue either.

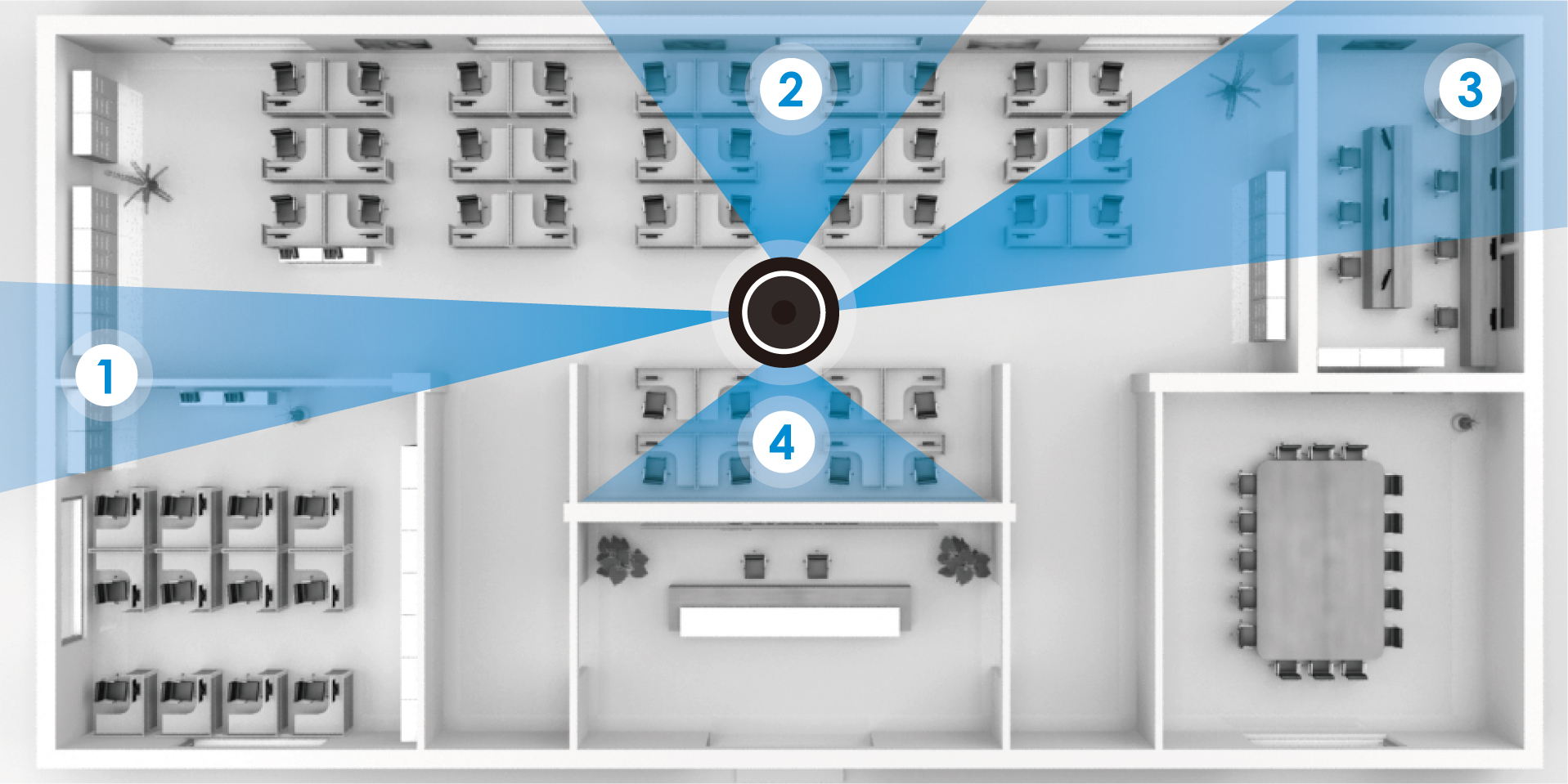

    Comprehensive Video Coverage from a Single Mount Point

    The MA9322-EHTV captures every angle for comprehensive video coverage from a single IP address, helping to reduce the amount of cameras needed and saving on installation time and costs.


      INTERIORS

      Offices and hotel lobbies, retail centers, hallways


      TRAFFIC

      Intersections, Traffic Monitoring


      CORNERS

      Building exteriors


      PARKING

      Garages, Lots

    System Information
    Model
  • MA9322-EHTV
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 8 GB
  • RAM
  • 4 GB
  • Camera Features
    Image sensor
  • 1/2.7" progressive CMOS
  • Max. Resolution
  • 2688x1920 (5MP) x 4
  • Lens Type
  • Motorized, Vari-Focal, Remote Focus
  • Focal Length
  • f= 3.7 ~ 7.7 mm
  • Aperture
  • F1.9 ~ F2.9
  • Iris Type
  • Fixed-iris
  • Field of View
  • 84.4° ~ 40.0° (Horizontal)
  • 59.8° ~ 28.6° (Vertical)
  • 104.5° ~ 49.2° (Diagonal)
  • Shutter Time
  • 1/5 sec. to 1/32,000 sec.
  • WDR Technology
  • WDR Pro
  • Day/Night
  • Yes
  • Removable IR-cut Filter
  • Yes
  • IR Illuminators
  • Built-in IR illuminators, effective up to 30 meters with Smart IR
  • Minimum Illumination
  • 0.095 lux @ F1.9 (Color)
  • 0.005 lux @ F1.9 (B/W))
  • 0 lux with IR Illuminators on
  • Tilt range
  • 0° ~ 105° each lens
  • Rotation range
  • ±90° each lens
  • Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Storage
  • Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
  • Built-in Installation Aids
  • Remote focus, remote zoom
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • 30 fps @ 2688x1920 x 4
  • Maximum Streams
  • 3 simultaneous streams
  • S/N Ratio
  • 67 dB
  • Dynamic Range
  • 120 dB
  • Video Streaming
  • Adjustable resolution, quality and bit rate control, configurable video cropping for bandwidth saving, Smart Stream III
  • Image Settings
  • General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
  • Illuminators: illuminators, anti-overexposure
  • Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur)
  • Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
  • Privacy mask, Scheduled profile settings
  • Audio
    Audio Capability
  • Two-way Audio (full duplex)
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • Built-in microphone
  • External microphone input
  • External line output
  • Effective Range
  • 5 meters
  • Network
    Users
  • Live viewing for up to 10 clients
  • Security
  • Access list, digest authentication, HTTPS, IEEE 802.1x, Password protection, user access log, user account management
  • Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
  • Protocols
  • 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP
  • PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Interface
  • 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
  • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Profile G, S supported, specification available at www.onvif.org
  • Solution Integration
    Video Motion Detection
  • Five-window video motion detection, human detection, time filter
  • VADP Package
  • Genetec, Trend Micro IoT Security (3-year free trial)
  • Alarm and Event
    Event Trigger
  • Audio detection*, camera tampering detection, digital input*, manual trigger
  • Motion detection, periodical trigger, recording notification, SD card life expectancy, system boott
  • * Requires AO-006 cable
    Event Action
  • Event notification via audio clip*, digital output, email, HTTP, FTP, NAS server, SD card
  • File upload via email, HTTP, FTP, NAS server, SD card
  • * Requires AO-006 cable
    General
    Connectors
  • RJ-45 cable connector for 10/100/1000 Mbps PoE network connection
  • Audio input*
  • Audio output*
  • AC 24V power input*
  • Digital input*
  • Digital ouput*
  • * Requires AO-006 cable
    LED Indicator
  • System power and status indicator
  • Power input
  • AC 24V
  • IEEE 802.3at PoE Class 4
  • Power consumption
  • Max: 25.5/13.84 W (IR on/off)
  • Dimensions
  • Ø 267x114 mm (Main body)
  • Ø 275x118 mm (w/ bracket)
  • Weight
  • 2.7 kg
  • Certifications
  • EMC: CE (EN55032 Class A, EN55024), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A)
  • Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
  • Environment: IK10 (IEC 62262), IP66 (IEC 60529)
  • IA: BIS (IS 13252)
  • Operating Temperature
  • Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
  • Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
  • Humidity
  • 90%
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • Included Accessories
    Packing Contents
  • Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack
