IDS-T4000



    IDS-T4000

    Linux-embedded iSCSI Storage Expansion Server for DIGIEVER NVR

    IDS-T4000 is a 4-bay standalone iSCSI server designed to expand the storage capacity to many DIGIEVER NVRs. Its Mult-RAID design allows you to flexibly define different RAID levels based on the importance of video.


4 BAY
____________________

Hard Disk Drive




N+M iSCSI Storage Expansion Architecture




Multi-RAID Storage Management




Remarkable Storage Capability




Superior Hardware Design

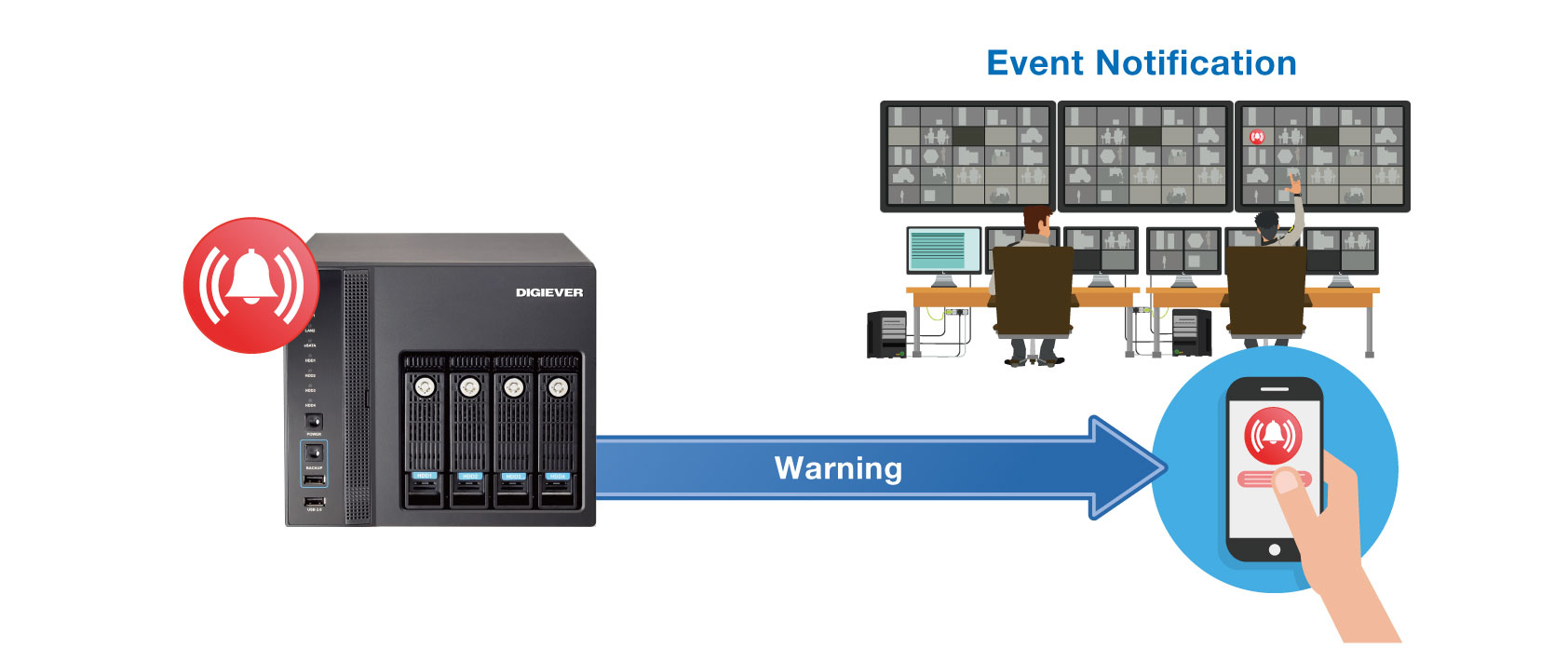

Network Capability and Self-Monitoring



CPU
  • Intel High Performance CPU
    		•
    Memory
  • 1 GB Flash (DOM)
  • 2 GB DDRIII memory
    		•
    Storage Capacity per HDD
  • Up to 10TB
    		•
    Storage Expansion Units (DIGIARRAY)
  • 2 Units
    		•
    HDD Tray
  • 12 (NVR:4 + DIGIARRAY Storage Expansion Units: 8)
    		•
    Maximum Capacity
  • Up to 120TB (NVR:40TB + DIGIARRAY Storage Expansion Units: 80TB)
    		•
    LAN Port
  • 2 x Gigabit RJ-45 Ethernet port
    		•
    LED Indicators
  • HDD1, HDD2, HDD3, HDD4, eSATA, LAN1, LAN2
    		•
    USB Connector
  • USB 2.0 x 6 (Front x 2, Back x 4)
    		•
    eSATA
  • 2 x eSATA port
    		•
    Buttons
  • Power, USB backup(reserve)
    		•
    Video Output Connector
  • HDMI x1, VGA x1 (For local configuration)
    		•
    Alarm Buzzer
  • System warning
    		•
    Form Factor
  • Tower
    		•
    Operation Environment
  • Temperature 0~45˚C
  • Humidity 0~95% R.H.
    		•
    Power Supply
  • Input: 100-240V AC, 50/ 60Hz
  • Output: 250W
    		•
    Power Consumption
  • Operation: 54~65 W
    • (with 4 x 500GB HDD installed in RAID 5 building process)
    Fan
  • 2 x quiet cooling fan (7cm, 12V DC)
    		•
    H/ W Dimensions
  • 184.94(H) x 205.3(W) x 245.8(D) mm
  • 7.28(H) x 8.08(W) x 9.68(D) inch
    		•
    Color Box Dimensions
  • 317(H) x 250(W) x 303(D) mm
  • 12.48(H) x 9.84(W) x 11.93(D) inch
    		•
    Carton Dimensions
  • 345(H) x 325(W) x 520(D) mm
  • 13.58(H) x 12.80(W) x 20.47(D) inch
    		•
    Color Box Shipping Weight
  • Net Weight (kg/PC): 4.43
  • Gross Weight (kg/PC): 6.1
  • Gross Weight (kg/CTN): 12.2
    		•
    Storage Ability
    iSCSI Storage Device
  • Up to 5 devices for DIGIEVER NVR
    		•
    Multi-RAID Numbers
  • Up to 2
    		•
    Maximum RAID Numbers
  • Up to 4 with DIGIARRAY
    		•
    Disk Management
  • Linear(JBOD), RAID0/ 1/ 5/ 6/ 10
    		•
    S.M.A.R.T HDD Health Monitoring
  • Yes
    		•
    Event & Action Management
    Event
  • Server Events: Internet connection lost, UPS low power warning, abnormal shutdown, built-in digital input
  • Storage Events: RAID Degraded / Failed / Rebuilding
  • Hardware Events: CPU temperature, CPU fan, system fan, HDD error, HDD failed, eSATA connection lost, battery low warning
    		•
    Action
  • E-Mail notification, SMS, buzzer alarm, SNMP trap, stack light, User Defined Action(HTTP out), built-in digital output
    		•
    Network Service
    Two LAN Port Applications
  • Share IP, Separated IP
    		•
    Protocol
  • HTTP, HTTPS, TCP/IP, DHCP, DNS, DDNS
    		•
    *Note: Please contact sales to know more integrated information.
