    Linux-embedded iSCSI Storage Expansion Server for DIGIEVER NVR

    IDS-T16000-RM is a 16-bay standalone iSCSI server designed to expand the storage capacity to many DIGIEVER NVRs. Its Mult-RAID design allows you to flexibly define different RAID levels based on the importance of video.


16 BAY
____________________

Hard Disk Drive




N+M iSCSI Storage Expansion Architecture




Multi-RAID Storage Management




Remarkable Storage Capability

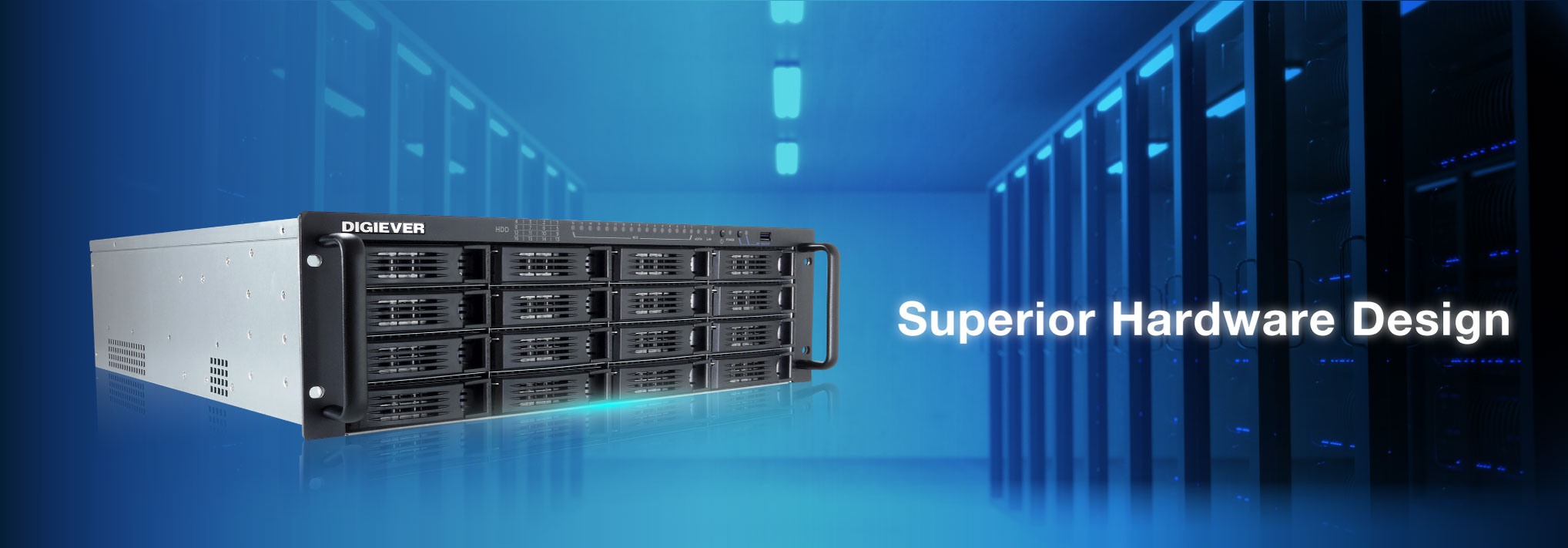

Superior Hardware Design




Network Capability and Self-Monitoring



CPU
  • Intel High Speed CPU
    		•
    Memory
  • 1 GB Flash (DOM)
  • 2 GB DDRIII memory
    		•
    Storage Capacity per HDD
  • Up to 10TB
    		•
    Storage Expansion Units (DIGIARRAY)
  • 2 Units
    		•
    HDD Tray
  • 24 (NVR: 16 + DIGIARRAY Storage Expansion Units: 8)
    		•
    Maximum Capacity
  • Up to 240 TB (NVR: 160TB + DIGIARRAY Storage Expansion Units: 80TB)
    		•
    LAN Port
  • 2 x Gigabit RJ-45 Ethernet port
    		•
    LED Indicators
  • HDD1, HDD2, HDD3, HDD4, HDD5, HDD6, HDD7, HDD8, HDD9, HDD10, HDD11, HDD12, HDD13, HDD14, HDD15, HDD16
  • eSATA, LAN1, LAN2
    		•
    USB Connector
  • USB 2.0 × 1(Front), USB 2.0 × 4（Back）
    		•
    eSATA
  • 2 x eSATA port
    		•
    Buttons
  • Power, USB backup(reserve)
    		•
    Video Output Connector
  • HDMI x1, VGA x1 (For local configuration)
    		•
    Alarm Buzzer
  • System warning
    		•
    Form Factor
  • Rack mount
    		•
    Operation Environment
  • Temperature 0~45˚C
  • Humidity 0~95% R.H.
    		•
    Power Supply
  • Input: 100-240V AC, 50/ 60Hz
  • Output: 600W
    		•
    Power Consumption
  • 178 W (with 16 x 500GB HDD installed in RAID 5 building process)
    		•
    Fan
  • 3 x cooling fan (8cm)
    		•
    H/ W Dimensions
  • 133.4(H) x 481(W) x 551.5(D) mm
  • 5.25(H) x 18.93(W) x 21.71(D) inch
    		•
    Color Box Dimensions
  • 279(H) x 592(W) x 757(D) mm
  • 10.98(H) x 23.31(W) x 29.80(D) inch
    		•
    Carton Dimensions
  • 279(H) x 592(W) x 757(D) mm
  • 10.98(H) x 23.31(W) x 29.80(D) inch
    		•
    Color Box Shipping Weight
  • Net Weight (kg/PC): 14.30
  • Gross Weight (kg/PC): 18.07
  • Gross Weight (kg/CTN): 18.07
    		•
    Storage Ability
    iSCSI Storage Device
  • Up to 6 devices for DIGIEVER NVR
    		•
    Multi-RAID Numbers
  • Up to 3
    		•
    Maximum RAID Numbers
  • Up to 5 with DIGIARRAY
    		•
    Disk Management
  • Linear(JBOD), RAID0/ 1/ 5/ 6/ 10
    		•
    S.M.A.R.T HDD Health Monitoring
  • Yes
    		•
    Event & Action Management
    Event
  • Server Events: Internet connection lost, UPS low power warning, abnormal shutdown, built-in digital input
  • Storage Events: RAID Degraded / Failed / Rebuilding
  • Hardware Events: CPU temperature, CPU fan, system fan, HDD error, HDD failed, eSATA connection lost, battery low warning, redundant power supply failure
    		•
    Action
  • E-Mail notification, SMS, buzzer alarm, SNMP trap, stack light, User Defined Action(HTTP out), built-in digital output
    		•
    Network Service
    Two LAN Port Applications
  • Share IP, Separated IP, Load balance
    		•
    Protocol
  • HTTP, HTTPS, TCP/IP, DHCP, DNS, DDNS
    		•
    *Note: Please contact sales to know more integrated information.
