DS-4005

    All-in-one Features of DIGISEVER NVR (Network Video Recorder)

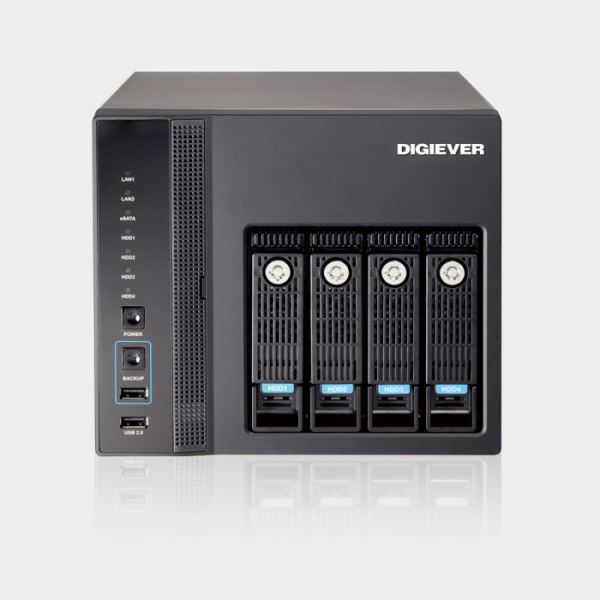

    DS-4005 DIGIEVER NVR is a powerful 4-bay standalone NVR. It gives a complete network surveillance system with outstanding remote monitoring and recording performance.


4 BAY
____________________

Hard Disk Drive

5 CH
____________________

Channels

150 Mbps
______________________

Network Throughput





DS-4005 is a 4-bay Linux-embedded standalone NVR, powered by high performance RISC CPU and performs excellent network surveillance of multiple IP cameras up to 5 channels of single server and up to 256 channels of multiple servers. DIGIEVER NVR supports remote browser monitoring, multi-layer dynamic E-Map, multi-megapixel recording and smart search playback. The monitoring demands can be satisfied anywhere and anytime by local display monitoring, remote browser monitoring, iOS and Android mobile monitoring.

With intuitive Quick Configuration, users can finish trouble free installation in only five steps on remote browsers. The Linux-embedded NVR supports event/schedule recording, automatic recovery, threshold of recorded videos and video clip. Through event and action management, DIGIEVER NVR lets user set various events and actions for instant alert. For emergent need of video duplication, DIGIEVER NVR is equipped with diverse backup methods so that users can freely backup recorded videos to USB dongle, NAS, Dropbox, etc. In terms of security control, user privilege management and log system offer user detailed information for security control. All these essential features can be configured quickly on remote browser interface.


CPU
  • RISC
  • Memory
  • 256 MB Flash (DOM)
  • 512 MB memory
  • Storage Capacity per HDD
  • Up to 8TB
  • Storage Expansion Units (DIGIARRAY)
  • 2 Units
  • HDD Tray
  • 12 (NVR:4 + DIGIARRAY Storage Expansion Units: 8)
  • Maximum Capacity
  • Up to 144TB (NVR:16TB + DIGIARRAY Storage Expansion Units: 128TB)
  • LAN Port
  • 1 x Gigabit RJ-45 Ethernet port
  • LED Indicators
  • HDD 1, HDD 2, HDD 3, HDD 4, eSATA, LAN
  • USB Connector
  • 3 x USB 2.0:
    • Front x 1: For video backup
    • Back x 2: For USB UPS device
    eSATA
  • 2 x eSATA port
  • Buttons
  • Power, USB backup
  • GPIO
  • 4-in, 2-out
  • Output Connector
  • N/A
  • Alarm Buzzer
  • System warning
  • Form Factor
  • Tower
  • Operation Environment
  • Temperature 0~40˚C
  • Humidity 0~95% R.H.
  • Power Supply
  • External power adaptor, 60W
  • Input: 19VDC, 3.42A
  • Power Consumption
  • Operation: 25.5~28.4 W
  • (with 4 x 500GB HDD installed and in RAID 5 building process)
    Fan
  • 2 x quiet cooling fan (7cm, 12V DC)
  • H/ W Dimensions
  • 245.8(D) x 205.3(W) x 184.94(H) mm
  • 9.68(D) x 8.08(W) x 7.28(H) inch
  • Color Box Dimensions
  • 317(H) x 250(W) x 303(D) mm
  • 12.48(H) x 9.84(W) x 11.93(D) inch
  • Carton Dimensions
  • 345(H) x 325(W) x 520(D) mm
  • 13.58(H) x 12.80(W) x 20.47(D) inch
  • Color Box Shipping Weight
  • Net Weight(kg/PC): 3.21
  • Gross Weight(kg/PC): 4.84
  • Gross Weight(kg/CTN):9.68
  • Remote Monitoring(Windows)
    Surveillance Software Application
  • Yes
  • Multi Web Browsers Support
  • IE, Chrome, Fireforx, Opera, IE Edge for configuration
  • Display Mode
  • 1/2/3/4/5/8/9/10/12/16/20/25/30/36/42/49/56/64 & 5+1/12+1-channel & sequential and full screen display modes
  • Mini-CMS Server Monitoring
  • Up to 256 channels from multiple NVR servers
  • E-Map
  • Yes, Multi-layer dynamic E-Map, pop-out event window
  • Instant Playback on Liveview and E-Map
  • Yes
  • Control
  • Play, Pause, Fast forward, Rewind, Slow Motion, Frame By Frame
  • Region of Interest (ROI)
  • Monitor 5 or 7 regional images from a high-resolution camera
  • 2-Way Audio Support
  • Yes
  • Liveview Instant Playback
  • Yes, adjustable window design
  • Camera Dewarp
  • Yes
  • Remote Playback (Windows)
    Multi-channel Playback
  • 1/ 4/ 5/ 9/ 16-channel display
  • Multi-NVR Playback
  • Up to 16 channels from multiple NVR servers
  • Search Mode
  • Search by date, time, channel, and various recorded file types including event reccording
  • Smart Search
  • Motion detection, missing object, foreign object, out of focus and camera occlusion
  • Data Search
  • Quickly find key event data to export the list (csv file) and save snapshot/ video clip
  • Region of Interest (ROI)
  • Monitor 5 or 7 regional images from a high-resolution camera
  • Control
  • PTZ control, PTZ auto cruising, digital zoom, optical zoom, focus control, full screen display, video sanpshot and preset position
  • Time-divided Search
  • Divide a video into many snapshots and display the first frame of that period of time on each channel
  • Recording
    Maximum Number of Channels
  • Up to 5
  • Recording Mode
  • Recording by Event & Schedule/ Always / Event / Audio Recording While Event Triggered
  • Event Smart Recording
  • Record event video in high video quality when an event is triggered; the normal video will be recorded in lower video quality.
  • Storage Capacity Management
  • Automatic Recycle by Percertage / Keep Video for Certain Days
  • Camera Group Recording
  • Yes, assign video keeping days for each camera by categorizing cameras in groups (storage days)
  • File Format
  • AVI format
  • Video Format
  • H.265/ H.264/ MPEG4/ MJPEG/ MxPEG/ Axis Zipstream
  • (Depending on the camera models)
    Maximum Network Throughput
  • 150Mbps (Varied in different environment)
  • Recording Enhancement
  • Real-Time Digital Watermarking
  • Advanced Event & Action Management
    Event
  • Event:
    • Camera Events: Connection lost, Connection lost delay, Motion detection, Audio detection, Cross-line detection, Digital input
    • NVR Events: NVR connection lost, UPS low power warning, Storage Threshold warning, Abnormal shutdown, External event (HTTP in), Built-in digital input
    • Storage Events: RAID Degraded/ Rebuilding/ Failed
    • NVR Hardware Events: CPU temperature warning, CPU fan warning, System fan warning, HDD error warning, HDD fail warning
  • Action
  • Up to Actions for Event:
    • Alert sound, Event log history, Video pop-out window, Highlight video window, Event recording, E-Mail notification, Video clip/ snapshot via E-Mail, SMS, Buzzer alarm
    • Go to pre-set point, Camera digital output,External IO box, User-defined action (HTTP out), Backup to external FTP, Stack light, Network horn speaker, Built-in digital output
  • Chain Event
  • Yes
  • Mobile Device
    iOS and Android Support
  • Yes
  • Display Mode
  • 1, 4, 6 -channel and sequential display mode
  • Control in Monitoring
  • PTZ control, Digital Contorl, Snapshot
  • Playback
  • Single View Playback
  • Search Mode
  • By date & time, channels, various recorded video types.
  • Control in Playback
  • Play, Pause, Fast forward, Rewind, Slow Motion, Frame By Frame
  • Remote Control
  • Yes, the mobile device can control the live view of NVR directly
  • Event Notification
  • Yes, Event notification will be sent from Multiple NVRs
  • Built-in EZSearch
  • Yes, NVRs in LAN can be searched easily
  • Security Management
    NVR Failover
  • Yes, Monitored by NVR failover server
  • Built-in SNMP server
  • Yes, support three MIB (management information base) to inform users of NVR status.
  • Access Control Device Management
  • Yes, manage up to 4 access control devices in default (Option up to 16 devices)*
  • External Modbus Analog I/O-Digital I/O Box
  • Yes, connect up to 4 Modbus Analog I/O-Digital I/O boxes in default (Option up to 16 boxes)*
  • IP Video Door Station Management
  • Yes, record videos in normal and event(call-up) situation
  • Integration of DIGIEVER PoE Switch
  • Yes
  • User Privilege Management
  • User can be assigned for different levels of privilege
  • Advanced User Management
  • Random password sent by Email, Account expiration by assigning a specific date
  • Log System
  • Hardware log, NVR log, event log, current user log, historical user log and file access log
  • IP Access Control
  • Specify IP address or network segment for the white and black list
  • Access Number Control
  • The access users numbers is allowed to be limited
  • Auto Logout
  • Auto logout idle time limit from configuration page
  • Two LAN Port Applications
  • N/A
  • Operating System
  • Linux-embedded system
  • Video Backup
    USB BACKUP
  • Insert external USB device into DIGIEVER NVR and press USB BACKUP button in 3 seconds to duplicate the video file instantly
  • USB Type CD-ROM Back up
  • Yes, support encryption for exported files
  • NVR Backup Server
  • Yes, preserve crucial camera videos from multiple DIGIEVER NVRs.
  • NVR Edge Backup
  • Yes, for simultaneous recording & mutual backup solution
  • Remote Backup
  • Yes, support remote backup to NAS
  • Local Backup
  • Yes, support local backup to DIGIARRAY
  • Network Service
    Protocol Support
  • HTTP/HTTPS, TCP/ IP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, SMTP and IPv6 (for NVR)
  • File Sharing Service
  • Windows networking, FTP service
  • Reliability
    Disk Management
  • JBOD, RAID0, RAID1/ 5/ 6/ 10 disk configurations
  • S.M.A.R.T HDD Health Monitoring
  • Yes
  • Suggested PC Requirements for Remote Monitoring
    Operating System
  • Microsoft® Windows® Vista/ 7 / 8 /10 (32 and 64-bit)
  • CPU
  • For channels under 16 : Intel® Dual core CPU 3.0 GHz or above.
  • For channels over 16 : Intel® i5/i7 CPU 3.3 GHz or above.
  • Memory
  • DDR3 8G or above
  • Web Browser for Login
  • Microsoft® Internet Explorer 10.0 or above, Microsoft® Edge 42.17134.1.0 or above, Chrome 56.0.29 or above, Firefox 51.0.1 or above, Opera 43.0.2 or above
  • NVR-Client Shortcut for Login
  • Yes, support save login information and auto login on startup
  • Suggested Switch Requirement
    Switch
  • Gigabit switch is highly recommended.
  • *Note: Please contact sales to know more integrated information.
