DBS-4264-RM



    DBS-4264-RM

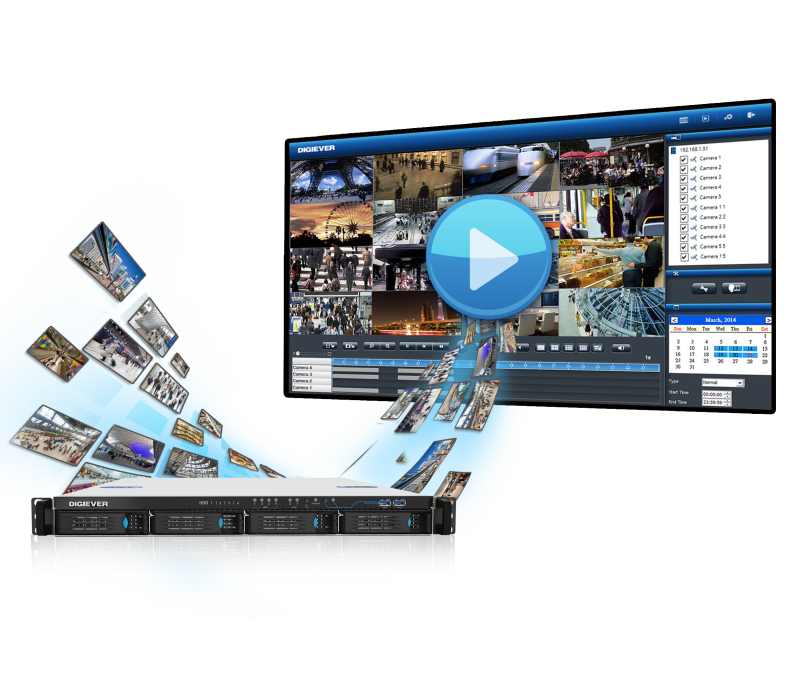

    Multi-NVR Video Backup Server

    DBS-4264-RM is a true PC-less and 4-bay standalone video backup server, designed for DIGIEVER NVR that provides 64 channels of IP camera. Videos saved in Video Backup Server are able to be directly viewed and exported via playback page without installing extra software.


4 BAY 64 CH
____________________ ____________________
Hard Disk Drive Channels





Key Features

  • Central Backup Configuration
  • 64-channel Video Backup from Multiple NVRs
  • Advanced Backup Schedule
  • 72TB High Storage Capacity
  • Flexible Storage Expansion Ability
  • Event Backup from DIGIEVER NVR: Video Clip and Snapshot

    • CPU
  • Intel CPU
    		•
    Memory
  • 4 GB Flash (DOM)
  • 4 GB DDR4 memory
    		•
    Storage Capacity per HDD
  • Up to 18TB
    		•
    HDD Tray
  • NVR:4
    		•
    Maximum Capacity
  • 72TB
    		•
    LAN Port
  • 2 x 2.5 Gigabit RJ-45 Ethernet port
    		•
    LED Indicators
  • HDD1, HDD2, HDD3, HDD4, LAN1, LAN2, One-touch Backup button
    		•
    USB Connector
  • Front: 2 x USB 3.2 Gen 1x1 for high speed video backup
  • Back: 4 x USB 3.2 Gen1 1x1 for supporting external pen drive, USB mouse/keyboard, USB UPS, etc.
    		•
    Buttons
  • Power, USB backup
    		•
    GPIO
  • 4-in, 4-out
    		•
    Output Connector
  • HDMI 2.0a x 2 (for local display)
    		•
    Alarm Buzzer
  • System warning
    		•
    Form Factor
  • Rack mount
    		•
    Operation Environment
  • Temperature 0~40˚C
  • Humidity 5~95% R.H.
    		•
    Power Supply
  • Input: 100-240V AC, 50/60Hz
  • Output: 250W
    		•
    Power Consumption
  • Operation: 22~50 W
    • (with 4 x 500GB HDD installed and in RAID 5 building process)
    Fan
  • 3 x cooling fan
    		•
    H/ W Dimensions
  • 45.4(H) x 430(W) x 548 (D) mm
  • 1.78 (H) x 16.9(W) x 21.5 (D) inch
    		•
    Color Box Dimensions
  • 180 (H) x 737 (W) x 587 (D) mm
  • 7.8 (H) x 29 (W) x 23.1 (D) inch
    		•
    Carton Dimensions
  • 215 (H) x 757 (W) x 607 (D) mm
  • 8.4 (H) x 29.8 (W) x 23.9 (D) inch
    		•
    Color Box Shipping Weight
  • Net Weight (kg/PC): 6.26
  • Gross Weight (kg/PC): 8.88
  • Gross Weight (kg/CTN): 10.88
    		•
    Video Backup
    Supported Channel
  • Up to 64
    		•
    Video Format
  • AVI format
    		•
    File Format
  • MJPEG/ MPEG-4/ H.264/ MxPEG (Depending on the camera models)
    		•
    Video Type
  • Normal and Event
    		•
    Video Backup Schedule
  • Yes, Define by camera channel
    		•
    Automatic Recycle
  • Max. days of each camera
  • Total capacity percentage
    		•
    Disk Management
  • Linear (JBOD), RAID 0/ 1/ 5/ 6/ 10
    		•
    S.M.A.R.T HDD Health Monitoring
  • Yes
    		•
    Remote Playback
    Multi-channel Playback
  • 1/ 4/ 9/ 16-channel simultaneous playback
    		•
    Multi-server Playback
  • Up to 16 channels from multiple backup servers and DIGIEVER NVRs
    		•
    Search Mode
  • Date, time, channel, video type
    		•
    Control
  • Rewind, Slow motion, Fast forward, Frame by Frame Playback
    		•
    Camera Dewarp
  • Yes, ImmerVision Enables and VIVOTEK
    		•
    Region of Interest(ROI)
  • Monitor 5 or 7 regional images from a high-resolution camera
    		•
    Time-divided Search
  • Divide a video into many snapshots and display the first frame of that period of time on each channel
    		•
    Snapshot
  • Yes
    		•
    Export
  • Yes, including instant export while playback
    		•
    Multi Web Browsers Support
  • Edge, Chrome, Fireforx, Opera, Safari for configuration
    		•
    iOS and Android Support
  • Yes, for single view playback
    		•
    Local Playback
    Multi-channel Playback
  • 1/ 4-channel simultaneous playback
    		•
    Search Mode
  • Date, time, channel, video type
    		•
    Camera Dewarp
  • yes
    		•
    Snapshot
  • Yes
    		•
    Export
  • Yes, to external USB storage device
    		•
    Playback via USB Device
  • Yes, exported from DIGIEVER NVR/DIGIEVER Backup server
    		•
    Event & Action Management
    Event Type
  • Up to 16 Event Configurations:
    • Server Events: connection lost, UPS low power warning, storage threshold warning, abnormal shutdown, external event (HTTP-in), built-in digital input
    • Storage Events: RAID degraded, RAID failed, RAID rebuildingt
    • Hardware Events: CPU temperature, CPU fan, system fan, HDD error, HDD fail, redundant power supply failure
    		•
    Action Type
  • Up to 7 Actions for Event:
    • E-Mail notification, SMS, buzzer alarm, SNMP trap, stack light, user-defined action and built-in digital output
    		•
    Security Management
    User Privilege Management
  • User can be assigned for different levels of privilege
    		•
    Auto Logout
  • Auto logout idle time limit from configuration page
    		•
    Reboot Auto Access
  • Yes, for unstable electric environment
    		•
    Log System
  • Hardware log, System log, event log, current user log, historical user log and file access log
    		•
    Two LAN Port Applications
  • Yes, including share IP, separated IP and link aggregation
    		•
    Operating System
  • Linux-embedded system
    		•
    Network Service
    Protocol Support
  • HTTP/HTTPS, TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, SMTP
    		•
    File Sharing Service
  • Windows networking, FTP service
    		•
    Built-in Servers
  • Built-in DHCP/NTP server
    		•
    Remote PC Requirements
    Operating System
  • Microsoft® Windows® 10/11
    		•
    CPU
  • Intel® i7 CPU or above
    		•
    Memory
  • 16G or above
    		•
    Web Browser for Login
  • Microsoft® Edge 44.18362.387.0 or above, Chrome 56.0.29 or above, Firefox 51.0.1 or above, Opera 43.0.2 or above, Safari 16.4.1 or above
    		•
    Suggested Switch Requirement
    Switch
  • Gigabit switch is highly recommended
    		•
    *Note: Please contact sales to know more integrated information.
