| System Information |
|
| Model |
MS9390-HV
|
| CPU |
Multimedia SoC (System-on-Chip) |
| Flash |
128 MB |
| RAM |
1 GB |
| Camera Features |
|
| Image sensor |
1/2.7" progressive CMOS |
| Max. Resolution |
4512x1728 (8MP) |
| Lens Type |
Fixed-focal |
| Focal Length |
f = 2.8 mm
|
| Aperture |
F1.2
|
| Iris Type |
Fixed-iris
|
| Field of View |
180° (Horizontal)
50° (Vertical)
180° (Diagonal)
|
| Shutter Time |
1/5 sec. to 1/32,000 sec. |
| WDR Technology |
WDR Pro |
| Day/Night |
Yes |
| Removable IR-cut Filter |
Yes |
| IR Illuminators |
Built-in IR illuminators, effective up to 20 meters with Smart IR , IR LED*8 |
| Minimum Illumination |
0.05 lux @ F1.2 (Color)
0.01 lux @ F1.2 (B/W)
0 lux with IR Illuminators on |
| Tilt range |
20° |
| Pan/ Tilt/ Zoom Functionalities |
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| Storage |
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
|
| Video |
|
| Video Compression |
H.265, H.264, MJPEG |
| Maximum Frame Rate |
30 fps @ 4512x1728
|
| Maximum Streams |
4 video streams (Up to 9 configurable profiles) |
| S/N Ratio |
46 dB
|
| Dynamic Range |
120 dB |
| Video Streaming |
Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings |
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur)
Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Privacy mask, Scheduled profile settings
|
| Audio |
|
| Audio Capability |
One-way Audio |
| Audio Compression |
G.711
G.726 |
| Audio Interface |
Built-in microphone |
| Effective Range |
5 meters |
| Network |
|
| Users |
Live viewing for up to 10 clients |
| Security |
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware
Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
User access log, user account management |
| Protocols |
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP
PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface |
10 Base-T/100 Base-TX Ethernet (RJ-45)
* It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF |
Profile G, S, T supported, specification available at www.onvif.org |
| Solution Integration |
|
| Smart Motion Detection |
Five-window video motion detection, people detection, time filter |
| Smart VCA |
Intrusion detection, loitering detection, line crossing detection, unattended object detection
Missing object detection, face detection, crowd detection, running detection
*Please access https://license.vivotek.com/ to get the free trial license. |
| VADP Package |
Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-year free trial) |
| Alarm and Event |
|
| Event Trigger |
Audio detection, Camera tampering detection, manual trigger, motion detection
Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
Periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
|
| Event Action |
Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card |
| General |
|
| Connectors |
RJ-45 cable connector for 10/100 Mpbs Network/PoE connection |
| LED Indicator |
System power and status indicator
|
| Power input |
IEEE 802.3at PoE Class 4
|
| Power consumption |
Max: 15.2 W/6.9 W (IR on/off)
|

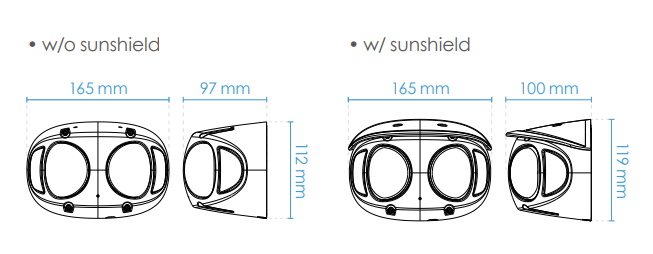

| Dimensions |
165 x 112 x 97 mm (w/o sunshield)
165 x 119 x 100 mm (w/ sunshield)
|
| Weight |
1.2 kg
|
| Certifications |
EMC: CE (EN55032, EN55024 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A),VCCI (VCCI-CISPR 32 Class A)
Safety: UL (UL60950-1), CB (IEC 60950-1)
Environment: IK10 (IEC 62262), IP66 (IEC 60529)
|
| Operating Temperature |
Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Working Temperature: -20°C ~ 55°C (-4°F ~ 131°F) (IR off)
Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) (IR on)
|
| Humidity |
90% |
| Warranty |
36 Months |
| System Requirements |
|
| Operating System |
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only) |
| Web Browser |
Chrome 58.0 or above
Internet Explorer 10/11 |
| Other Players |
VLC: 1.1.11 or above
|
| Included Accessories |
|
| Packing Contents |
Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack, sunshield
|
