FD9383-HV

Built with Magic, Priced for Value

The 9383 is your gateway to smarter security. As our first AI camera in the C-Series, it boasts an advanced Sony image sensor coupled with STARVIS 2 technology, delivering 2.5x greater dynamic range and light sensitivity. With Smart VCA, and vision object analytics, it's a powerhouse of AI intelligence, making your security solutions simpler, smarter, and safer.


Key Features

  • 30 fps @ 2560x1920
  • H.265 Compression Technology with Smart Stream III
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
  • 30M Smart IR III
  • Signed Firmware and Secure Boot
  • Smart Motion Detection
  • Trend Micro IoT Security
  • Smart VCA and Vision Object Analytics

    • Imaging Performance

    Experience class-leading image performance with the 9383. Its advanced Sony image sensor, combined with STARVIS 2 technology, delivers exceptional clarity and precision. Enjoy a 2.5x increase in dynamic range and light sensitivity, ensuring superior visibility in all lighting conditions. From bright daylight to low-light environments, rest assured that every detail is captured with remarkable clarity.


    AI Powerhouse

    Class-leading AI features in our entry-tier series, providing you with advanced analytics and vision object analytics capabilities for unmatched security solutions.

    Enhance your investigative efficiency with potent data revealed by the 83 series, identifying people and vehicles by their distinctive attributes such as color, gender, and type. Simplify searches and minimize redundant results with precise object tracing.


    Design

    The 83 series is a comprehensive package, meticulously designed with fundamental principles spanning from hardware to software.


    NDAA Compliance


    System Information
    Model
  • FD9383-HV (2.8mm)
  • FD9383-HV (3.6mm)
    		•
    CPU
  • Multimedia SoC (System-on-Chip)
    		•
    Flash
  • 8 GB
    		•
    RAM
  • 2 GB
    		•
    Camera Features
    Image Sensor
  • 1/2.8" Progressive CMOS
    		•
    Max. Resolution
  • 2560x1920 (5MP)
    		•
    Lens Type
  • Fixed-focal
    		•
    Focal Length
  • FD9383-HV (2.8mm): f = 2.8 mm
  • FD9383-HV (3.6mm): f = 3.6 mm
    		•
    Aperture
  • F2.0
    		•
    Iris Type
  • Fixed iris
    		•
    Field of View
  • FD9383-HV (2.8mm):
    • 103.4° (Horizontal)
    • 75.3° (Vertical)
    • 135.2° (Diagonal)
  • FD9383-HV (3.6mm):
    • 79.6° (Horizontal)
    • 57.8° (Vertical)
    • 105.8° (Diagonal)
    Shutter Time
  • 1/5 sec. to 1/32,000 sec.
    		•
    WDR Technology
  • WDR Pro
    		•
    Day/Night
  • Yes
    		•
    Removable IR-cut Filter
  • Yes
    		•
    IR Illuminators
  • Built-in IR Illuminator up to 30 meters with Smart IR, IR LED*2
    		•
    Minimum Illumination
  • 0.055 lux @ F2.0(Color)
  • 0.005 lux @ F2.0 (B/W)
  • 0 lux with IR illumination on
    		•
    Pan Range
  • 35°
    		•
    Tilt Range
  • 75°
    		•
    Rotation Range
  • 350°
    		•
    Pan/Tilt/Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
    		•
    Storage
  • Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
    		•
    Built-in Installation Aids
  • Pixel calculator
    		•
    Video
    Video Compression
  • H.265, H.264, MJPEG
    		•
    Maximum Frame Rate
  • 30 fps @ 2560x1920
    		•
    Maximum Streams
  • 3 video streams (Up to 8 configurable profiles)
    		•
    Main Stream
  • 30 fps @ 2560x1920, 2048x1536, 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3)
  • 30 fps @ 2560x1440, 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
  • 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
    		•
    2nd Stream
  • 30 fps @ 1920x1440, 1600x1200, 1280x960, 640x480 (4:3)
  • 30 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
  • 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
    		•
    3rd Stream
  • 30 fps @ 1280x960, 800x600, 640x480 (4:3)
  • 30 fps @ 1280x720, 640x360 (16:9)
  • 60 fps @ 1280x720, 640x360 (16:9)
    		•
    S/N Ratio
  • FD9383-HV (2.8mm): 58 dB
  • FD9383-HV (3.6mm): 56 dB
    		•
    Dynamic Range
  • 120 dB
    		•
    Video Streaming
  • Adjustable resolution, quality and constant bit rate control, Smart Stream III
    		•
    Image Settings
  • General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
  • Illuminators: illuminators, anti-overexposure/smart IR
  • Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
  • Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), Image sharpener for motion blur, AE speed adjustment, WDR
  • Privacy mask, Pixel calculator, Scheduled profile settings
    		•
    Network
    Users
  • Live viewing for up to 10 clients
    		•
    Security
  • Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
    		•
    Protocols
  • 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
    		•
    Interface
  • 10 Base-T/100 Base-TX Ethernet (RJ-45)
    • *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Profile G, S, T supported, specification available at www.onvif.org
    		•
    AI Analytics
    Compute Capability
  • SoC with built-in hardware deep learning accelerator
    		•
    Vision Object Analytics
  • Object Detection: People, Vehicle (4-wheeled, 2-wheeled)
  • Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
  • Re-Search Extraction; Path Extraction
    		•
    Application
  • Deep Learning VCA (Smart Motion Detection, Smart VCA)
    • Smart Motion Detection - Five-window video motion detection, People detection, Vehicle detection, Time filter
    • Smart VCA - Intrusion detection, Loitering detection, Line crossing detection, Face detection
    Application available with license
  • Unattended object detection, Missing object detection, Crowd detection, Running detection, Parking Violation Detection, Restricted Zone Detection
    • *Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
    Solution Integration
    Applications
  • Trend Micro (Default, 1-year free trial)
    		•
    Alarm and Event
    Event Trigger
  • Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
    		•
    Event Action
  • Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
  • File upload via email, HTTP, FTP/SFTP, NAS server, SD card
    		•
    General
    Connectors
  • RJ-45 cable connector for 10/100Mbps Network/PoE connection
    		•
    LED Indicator
  • System power and status indicator
    		•
    Power Input
  • IEEE 802.3af PoE Class 3
    		•
    Power Consumption
  • Max. 8.5 W/ 6.0 W (IR on/off)
    		•
    Dimensions
  • Ø 117.2 x 89.6 mm
    		•
    Weight
  • 550 g
    		•
    Certifications
  • EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A)
  • Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1)
  • Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
    		•
    Operating Temperature
  • Starting Temperature:
    • -10°C ~ 50°C (-14°F ~ 122°F)
  • Working Temperature:
    • -30°C ~ 55°C (-22°F ~ 131°F) (IR off)
    • -30°C ~ 50°C (-22°F ~ 122°F) (IR on)
    Humidity
  • 90%
    		•
    Warranty
  • Warranty might vary by territory or situation.Please check: https://www.vivotek.com/support/warranty
    		•
    System Requirements
    Operating System
  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)
    		•
    Web Browser
  • Chrome 58.0 or above
    		•
    Other Players
  • VLC: 1.1.11 or above
    		•
    Included Accessories
    Packing Contents
  • Quick installation guide, alignment sticker, screw pack, cable gland
    		•
    DORI (EN 62676-4 Standard)
    Detect (25PPM/ 8PPF)
  • FD9383-HV (2.8mm): 60.4 m (198.1 ft)
  • FD9383-HV (3.6mm): 78.3 m (256.8 ft)
    		•
    Observe (63PPM/ 19PPF)
  • FD9383-HV (2.8mm): 24.1 m (79.2 ft)
  • FD9383-HV (3.6mm): 31.3 m (102.7 ft)
    		•
    Recognize (125PPM/ 38PPF)
  • FD9383-HV (2.8mm): 12 m (39.5 ft)
  • FD9383-HV (3.6mm): 15.6 m (51.3 ft)
    		•
    Identify (250PPM/ 76PPF)
  • FD9383-HV (2.8mm): 6.0 m (19.6 ft)
  • FD9383-HV (3.6mm): 7.8 m (25.5 ft)
    		•
    Datasheets Download
    QIG Download
    User's Manual Download

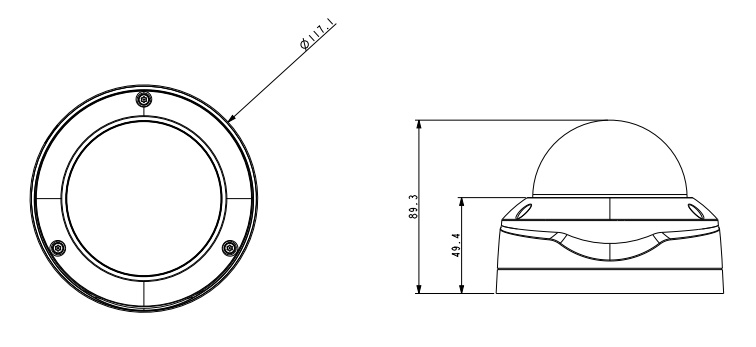

    Dimension
