AU-002

    Network Speaker Driver





Overview

AU-002 Network Speaker Driver provides the solution to convert traditional analog speaker to network speaker. It can accept standard SIP call or multiple addressable UDP broadcast protocol supports network or Internet. This IP driver supports standard VoIP CODEC like: G.711, G.722, G.726, G.729, it 32Kx 16bit CD quality music playback function.

AU-002 is also compatible with VAST 2 for all the functionalities and allow users to upload their own audio clips on VAST 2 for broadcasting.

Key Features

  • Support SIP and UDP Broadcast Protocol
  • Build in 20W Power Amplifier to Drive Speaker Directly
  • Powered from the IP Network Cable Using PoE+ IEEE 802.3at
  • Remote Configuration and Firmware Upgrade by HTTPS


  • System Architecture

    Product Information
    Model
  • AU-002
  • Driver Impedance
  • Lower to 3 ohm speaker totally
  • Average Min. Power
  • 20 W
  • Microphone
  • 100Hz-16KHz Single point, SPL-44 ± 2db AT 2 KΩ
  • LED Luminous
  • 3x LED display status
  • Network
    SIP Support
  • RFC 3261(SIP base standard)
  • Interface
  • WAN: RJ-45x1, 10/100Mbps Fast Ethernet port
  • Supported Protocols
  • SIP, IPv4/v6, RIPv2 / OSPF, HTTPS, QoS DSCP, FTP, TFTP, SNMP v2c / v3, SNMP, IGMP, DHCP, SSHv2, PIM- DVMRP, RMON
  • Audio Codec
  • G.711 a/uLaw, G.726, G.722, G.729, iLBC, L16
  • Support Function
  • Auto provision, Audio tone testing, System log
  • Security
  • Password protection, IP address filter, user access log, authentication
  • VAST 2 Integration (Extension License Required)
    Two-way Communication
  • Supported
  • Automatic Trigger Audio Clips
  • Supported
  • General
    Casing
  • Plastic
  • Power
  • PoE+ (Power over Ethernet), IEEE 802.3at
  • Operating Temperature
  • -35°C ~ 60°C (-31°F ~ 140°F)
  • Dimensions
  • 110 x 85 x 25 mm
  • Weight
  • 115g
  • Certifications
  • CE, FCC, LVD EN62368-1
  • Warranty
  • 24 months
  • Datasheets Download
    QIG Download
    Manual Download

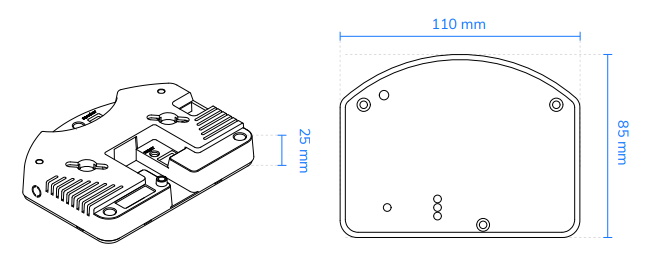

    Dimension
