MTG-100T



    MTG-100T

    UHF Digital Transmitter (Rechargeable Battery)


Option 1： MTG-100T Transmitter + Mini-gooseneck microphone MM-10
Option 2： MTG-100T Transmitter + Headworn microphone MU-101



  • Durable, ultra-lightweight and pocket-sized housing.
  • Extremely easy to use.
  • 16 user selectable channels.
  • Loud, crystal-clear audio & encrypted transmission, thanks to digital technology.
  • Worn comfortably with an adjustable neck lanyards or fit inside any pocket.
  • Backlit LCD screen display channel, battery status, RF & audio signals, gains level & RF power.
  • Accepts MU-101 headworn microphone or MM-10 subminiature-mini gooseneck microphone (used as a handheld microphone).
  • Accepts other audio sources, iPod/MP3/CD player for playback of pre-recorded material.
  • Programmable automatic shut-off timer conserves battery hours.
  • Built-in high performance lithium polymer rechargeable battery.
  • Up to 12-hour battery life per charge.
    • Frequency Range CEPT/EU: 863~865 MHz / USA: 926~928 MHz
    Oscillation Mode PLL Synthesized
    Preset Channels 16
    Switching Bandwidth 2MHz
    Channel Grid 125 kHz
    RF Output Power < 10mW (Low/Mid/High, switchable)
    Sensitivity Approx. -90dBm
    Operating Range Up to 100 meters / 330 feet (line-of-sight)
    Frequency Response 50Hz~10kHz
    Power Supply Built-in high capacity lithium polymer rechargeable battery.
    Operating Time >12 hours
    Automatic Shut-off Time 10 minutes~42 hours (programmable)
    Dimensions 45(W)x84(H)x21(D)mm / 1.8(W)x3.3(H)x0.8(D)"
    Weight Approx. 65g / 2.3oz (rechargeable battery included)
    Datasheets Download

    Accessories

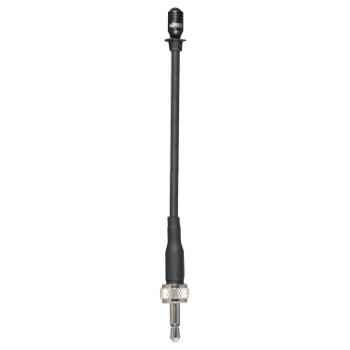

    MM-10

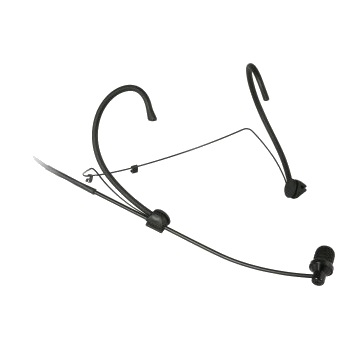

    MU-101
