MTG-100R



    MTG-100R

    UHF Digital Receiver (Rechargeable Battery)


Option 1： MTG-100R Receiver + Stereo earphones E-10S
Option 2： MTG-100R Receiver + Stereo headphones E-20S



  • Built-in rechargeable lithium battery for long time continuous use.
  • PC controllable Channel-Lock to prevent accidental change.
  • Convenient 4, 12 or 28-slot storage and charger carry case for easy charging, storage and manage inventory.
  • Ethernet interface allows system setting and management.
  • Operates on user license-free ISM bands: EU 863~865 MHz and USA 926~928 MHz.
  • Up to 100 m (330 ft) line-of-sight reception range.
  • Interference-free from Bluetooth, Wi-Fi and 2.4 GHz wireless transmission.
  • Digitally encrypted technology enables secure audio transmission, preventing unauthorized listening.
  • Digital technology ensures crystal-clear audio quality and listeners have the best tour experience.
  • Industry’s only true diversity technology for exceptional reception quality.
  • Durable, ultra-lightweight and pocket-sized portable receiver and transmitter. Incredibly easy to set-up and use.
  • Industry’s only auto shut-off timer for saving power consumption to extend the operation time.
  • Backlit LCD screen displays all relevant parameters.
    • Frequency Range CEPT/EU: 863~865 MHz / USA: 926~928 MHz
    Oscillation Mode PLL Synthesized
    Preset Channels 16
    Switching Bandwidth 2MHz
    Channel Grid 125 kHz
    Sensitivity Approx. -90dBm
    Operating Range Approx. 100 meters / 330 feet (line-of-sight)
    Frequency Response 50Hz~10kHz
    Power Supply Built-in high capacity lithium polymer rechargeable battery. Replaceable.
    Operating Time >12 hours
    Automatic Shut-off Time 10 minutes~42 hours (programmable)
    Dimensions 45(W)x84(H)x21(D)mm / 1.8(W)x3.3(H)x0.8(D)"
    Weight Approx. 65g / 2.3oz (rechargeable battery included)
    Datasheets Download

    Accessories

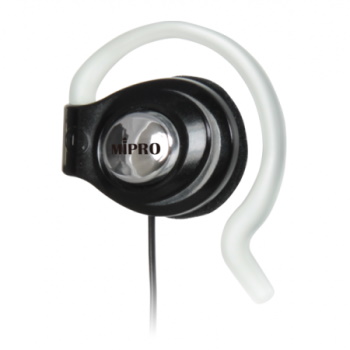

    E-5S

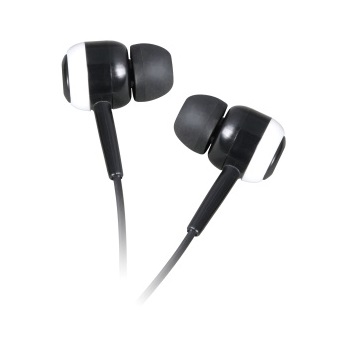

    E-10S

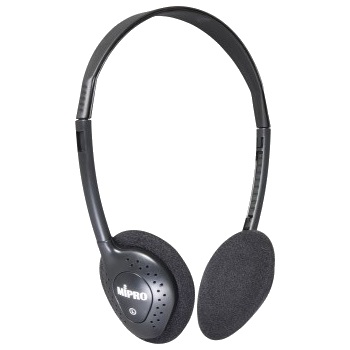

    E-20S
