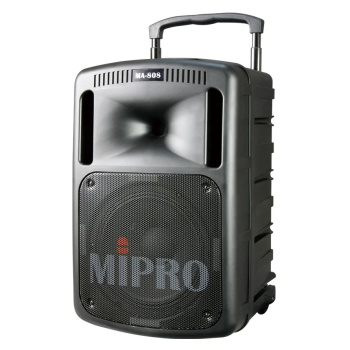

MA-808



    MA-808

    Dual-channel MA-Series Portable Wireless PA System


Option 1： MA-808 Speaker + Wireless Handheld Mic ACT-32H * 2
Option 2： MA-808 Speaker + Wireless Bodypack Clip Mic ACT-32T * 2
Option 3： MA-808 Speaker + ACT-32H + ACT-32T



  • Huge 250-watt power and 123dB SPL for crowds up to 2,000.
  • Class-D and Class-AB amplifiers drive 2-way speakers.
  • Robust design with retractable handle and sturdy wheels for easy transport.
  • Up to 4 diversity UHF 16 scanable frequency receivers.
  • Press "SCAN" button receiver automatically scans for an open, interference-free frequency.
  • Press "ACT" button syncs the receiver and transmitter frequencies automatically.
  • 3 power modes: AC, rechargeable battery and direct DC.
  • Industry's only MTM-90 wireless interlinking transmitter option to interlink multiple.
  • MIPRO MA-808 portables wirelessly to extend transmission range and expand coverage.
  • External speaker output powers a passive extension speaker.
  • XLR & 1/4" combo jack for one wired dynamic microphone.
  • Line-in for audio playing / Line-out for external recording.
  • Active limiter – keeps sounds clean when driven hard.
  • A voice priority feature that mutes the music when mic is used.
  • A smart 4-segment battery meter for accurate battery reading and charging status.
  • Echo effect control so singers sound fuller and richer.
  • Built-in storage compartments for 2 transmitters.
  • 5~6 hours continuous use per charge.
  • 90~264V auto-switching AC power supply.
    • Power Output 250-Watt, HF 8O / LF 4 Ohm
    T.H.D. < 0.1%
    Frequency Response 50Hz~18KHz
    Treble Speaker 1.5-inch, Titanium Compression Driver
    Bass Speaker 10-inch, Neodymium Cone Driver
    Active Crossover network 2.5kHz / -12dB oct
    Operating Mode Direct operation on speaker unit
    3 in 1 Recorder / Player Plays music CD or SD card.
    Audio Inputs Balanced, Unbalanced Mic & Line-in
    Power Supply Built-in two pieces of 12V/4.5AH rechargeable battery with charger & 90~264V AC switching power supply.
    Charging & Operating Time 6~8 hours charge for 5~6 hours use. (automatic charging management)
    Dimensions 360(W)×560(H)×350(D)mm / 14.2(W)x22.0(H)x13.8(D)"
    Weight 20.5kg / 45.2lbs
    Exterior Color Black
    Note Varied specifications on carrier frequency range, maximum deviation, RF output power and spurious emission to comply regulation of different countries.
    Datasheets Download

    Accessories

    ACT-32H

    ACT-32T

    MU-53HN-XLR

    MA-808EXP

    Power Supply

    MB-70

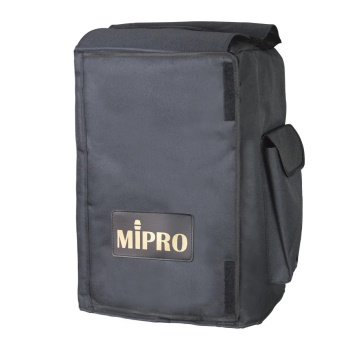

    SC-808

    Tripod Stand
