MA-708



    MA-708

    Dual-channel MA-Series Portable Wireless PA System


Option 1： MA-708 Speaker + Wireless Handheld Mic ACT-32H * 2
Option 2： MA-708 Speaker + Wireless Bodypack Clip Mic ACT-32T * 2
Option 3： MA-708 Speaker + ACT-32H + ACT-32T



  • Lightweight, extremely rugged design delivering a 190-watt RMS clear and powerful sound for crowds up to 1,000.
  • High-efficiency class-D amplifier drive 1" titanium compression driver and 8" woofer speakers.
  • Retractable handle and sturdy wheels for easy transport.
  • New innovative "digital master volume control" feature enables volume loudness be manually or remotely controlled by an optional MIPRO 3Ha Handheld Transmitter Microphone instead of a separate remote.
  • Up to 4 diversity UHF wireless receivers.
  • Industry's easiest and fastest channel set-up using MIPRO AutoScan and ACT technology.
  • Industry's only MTM-90 wireless interlinking transmitter option to interlink multiple MIPRO MA-808 portables wirelessly to extend transmission range and expand coverage.
  • Weights only 16kg/35 lbs - loaded.
  • Active limiter - keeps sounds clean when driven hard.
  • A voice priority feature that mutes the music when mic is used.
  • Echo effect control so singers sound fuller and richer.
  • A smart 4-segment battery meter for accurate battery reading and charging status.
  • Up to 7 hours continuous use per battery charge or plug it in for continuous use.
  • External speaker output powers a passive extension speaker.
  • XLR & 6.3mm (1/4") microphone inputs with individual volume control.
  • Line-in for audio playing / Line-out for external recording.
  • Built-in storage compartments for 2 transmitters.
  • 3 power modes: AC, rechargeable battery and direct DC.
    • Power Output 190W(rms)/4 ohm
    T.H.D. < 0.1%
    Frequency Response 50Hz~18KHz
    Speaker 1" horn tweeter, 8" woofer
    Crossover network 2.8KHz, -12dB/Oct
    Audio Inputs Balanced, Unbalanced Combo MIC & LINE-IN RCA Jack
    Audio Outputs 1 REC Output, RCA Jacks
    Audio Inputs Balanced, Unbalanced Combo MIC & LINE-IN RCA Jack
    Digital Master Volume Manual or remotely by a handheld transmitter controlled
    CD/MP3 Player Optional
    Wireless Receiver UHF 16 switchable channels. AutoScan and ACT technology.
    Wireless Microphones Optional
    Frequency Range 620~934MHz
    Bandwidth 24MHz
    Preset Channels 16 non-interfering channels
    Antennas Integrated
    Power Supply Built-in 12V/4.5AH rechargeable battery x 2 & 18V DC / 100~240V AC switching power supply.
    Rechargeable Built-in MB-70 battery x 2
    Charging & Operating Time 8 Hours (automatic charging system) for 6~8 hours operation
    Dimensions 336(W)×545(H)×325(D)mm / 13.2(W)x21.5(H)x12.8(D)"
    Weight Approx. 16.3kg / 35.9lbs
    Exterior Color Black
    Note Varied specifications on carrier frequency range, maximum deviation, RF output power and spurious emission to comply regulation of different countries.
    Datasheets Download

    Accessories

    ACT-32H

    ACT-32T

    MU-53HN-XLR

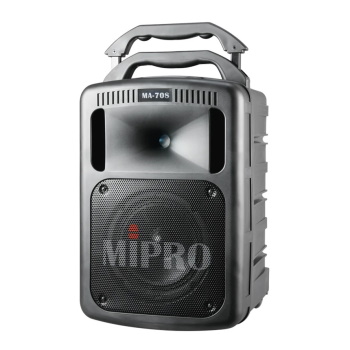

    MA-708EXP

    Power Supply

    MB-70

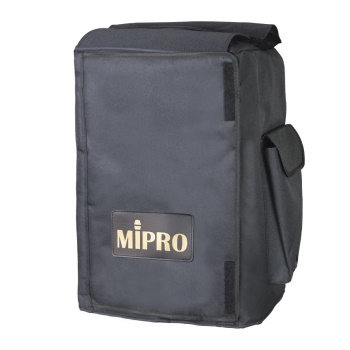

    SC-708

    Tripod Stand
