MA-707



    MA-707

    Dual-channel Classic Portable Wireless PA System


Option 1： MA-707 Speaker + Wireless Handheld Mic ACT-32H * 2
Option 2： MA-707 Speaker + Wireless Bodypack Clip Mic ACT-32T * 2
Option 3： MA-707 Speaker + ACT-32H + ACT-32T



  • One-piece molded cabinet with high efficiency amplifier system to drive a full-range speaker for powerful and clear sound.
  • Retractable handle and rugged wheels make it amazingly easy to transport. It can be hand-carried or installed on a tripod stand.
  • Built-in transmitters' storage.
  • Modularized optional accessories for fast and easy installation and replacement.
  • Control for high / low TONE adjustment.
  • Mixed input amplification of wired mic, wireless mic, and audio players.

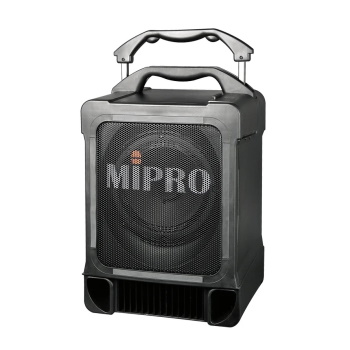

  • Extension speaker socket can be used with MA-707EXP passive speaker.
  • Industry’s first built-in active dual antennas for long distance and stable receiving.
  • Built-in AC switching power supply and rechargeable batteries.
    • Max. SPL 107 dB
    Drivers 8" full-range
    Frequency Range 70 Hz – 14 kHz
    Audio Inputs MIC IN: 1 × XLR, 1 × 1/4" (6.3 mm)
    LINE IN: 1 × 1/4" (6.3 mm)
    Audio Output LINE OUT: 1 × 1/4" (6.3 mm)
    Amplifier Class AB
    Output Power 100 W RMS, 170 W peak
    Receiver Modules Up to 2
    Audio Players CD/USB player (optional)
    Transmitter Modules N/A
    Extension Speaker 1 × 1/4" (6.3 mm)
    Other Functions TONE control
    Power Supply AC 100 – 240 V or DC 24 – 32 V
    Battery Built-in Lead-acid battery
    Battery Indicator Single LED Indicator
    Standby Time Up to 8 hours
    Color Black
    Dimensions 325 × 518 × 258 mm (W × H × D)
    Weight Approx. 12.3 kg

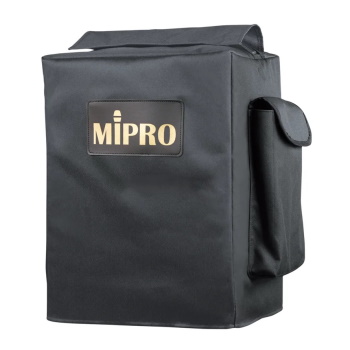

    Optional Accessories SC-707 carry bag
    MS-70 tripod stand
    MM-Series microphones
    MB-80 Li-ion battery
    Patents and Approvals Patented. Telecom and safety regulations approved
    Note Refer to the actual product in the event of product description discrepancy
