MA-505



    MA-505

    Dual-channel Portable Wireless PA System


Option 1： MA-505 Speaker + Wireless Handheld Mic ACT-32H * 2
Option 2： MA-505 Speaker + Wireless Bodypack Clip Mic ACT-32T * 2
Option 3： MA-505 Speaker + ACT-32H + ACT-32T



  • One-piece molded cabinet with high efficiency amplifier system to drive the two-way speaker system for powerful and clear sound.
  • Robust, rugged enclosure, and lightweight makes it easy for hand carry. Also can be installed on a tripod stand.
  • VOP (voice-over-priority) and TONE control.
  • Mixed input amplification of wired mic, wireless mic, and audio players.
  • Extension speaker socket can be used with MA-505EXP passive speaker.
  • Industry’s only wireless interlinking transmitter option to interlink multiple MA-505 portables wirelessly to extend transmission range and expand coverage.
  • Industry’s first built-in active dual antennas for long distance and stable receiving.
  • Built-in AC switching power supply and rechargeable battery.
  • Storage compartment for AC power cable.
    • Max. SPL 105 dB
    Drivers 1" Tweeter & 8" Woofer
    Frequency Range 70 Hz – 14 kHz
    Audio Inputs MIC IN: 1 × XLR, 1 × 1/4" (6.3 mm)
    LINE IN: 1 × 1/8" (3.5 mm)
    Audio Output LINE OUT: 1 × 1/8" (3.5 mm)
    Amplifier Class D
    Output Power 145 W RMS, 248 W peak
    Receiver Modules Up to 4
    Audio Players Bluetooth, CD/USB/SD player & recorder (optional)
    Transmitter Modules MTM-91, MTM-24, MTM-58 (optional)
    Extension Speaker 1 × 1/4" (6.3 mm)
    Other Functions VOP, TONE control, siren sound effect
    Power Supply AC 100 – 240 V or DC 24 – 28 V
    Battery Built-in Li-ion battery
    Battery Indicator 4-segment indicators (25/50/75/100%)
    Standby Time Up to 8 hours
    Color Black
    Dimensions 275 × 406 × 225 mm (W × H × D)
    Weight Approx. 8.0 kg
    Optional Accessories SC-505 carry bag
    MS-70 tripod stand
    MM-Series microphones
    Patents and Approvals Patented. Telecom and safety regulations approved
    Note Refer to the actual product in the event of product description discrepancy
    Datasheets Download

    Accessories

    ACT-32H

    ACT-32T

    MU-53HN-XLR

    Power Supply

    MB-35

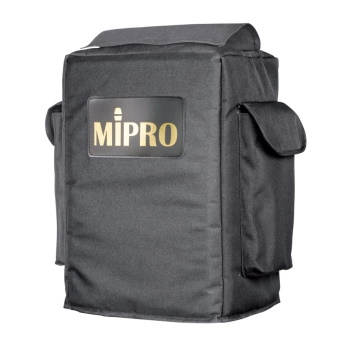

    SC-505

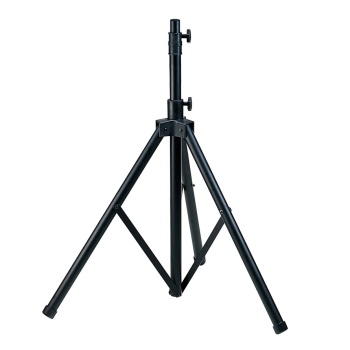

    Tripod Stand
