MA-100D



    MA-100D

    Dual-channel Compact Personal Wireless PA System


Option 1： MA-100D Speaker + Wireless Handheld Mic ACT-32H * 2
Option 2： MA-100D Speaker + Wireless Bodypack Clip Mic ACT-32T * 2
Option 3： MA-100D Speaker + ACT-32H + ACT-32T



  • Easy hand-carrying or stand-mounting makes MA-100 the most ideal megaphone for various applications.
  • A robust and lightweight speaker cabinet integrates with a redesigned handle and a high efficiency full-range speaker to deliver clear and powerful sound.
  • One UHF or ISM 5.8 GHz band receiver module for long-distance and reliable reception performance.
  • Plug-in Bluetooth module, USB player / recorder, built-in echo function, and alarm siren which has a fade-in effect.
  • Equipped with audio input mixer. Each audio source has individual volume control.
  • Removable Li-ion battery holder for fast insertion and replacement.
  • Bluetooth with TWS technology can combine two megaphones for stereo sound.
    • Receiver Channels Dual-channel
    Max. SPL 101 dB
    Drivers 5" full-range
    Frequency Range 100 Hz – 16 kHz
    Audio Inputs MIC IN: 1 × 1/4" (6.3 mm)
    LINE IN: 1 × 1/8" (3.5 mm)
    Audio Output LINE OUT: 1 × 1/8" (3.5 mm)
    Amplifier Class D
    Output Power 50 W RMS, 85 W peak
    Receiver Module 2 × UHF or ISM 5.8 GHz module
    Audio Players Plug-in Bluetooth module & USB recorder / player
    Other Functions Echo on mics & siren sound effect
    Power Supply DC (19 – 24 V) socket for external AC (100 – 240 V) power supply
    Battery 4 × 18650 Li-ion batteries (MB-14)
    Battery Indicator 4-segment indicator (25/50/75/100%)
    Standby Time Up to 10 hours
    Dimensions 135 × 144 × 240 mm
    Weight Approx. 1.9 kg (batteries included)
    Optional Accessories SC-100 carry bag
    MS-30 tripod stand
    MM Series microphones
    Patents and Approvals Patented. Telecom and safety regulations approved
    Note Refer to the actual product in the event of product description discrepancy
    Datasheets Download

    Accessories

    ACT-32H

    ACT-32T

    MU-53HN-XLR

    Power Supply

    MB-14

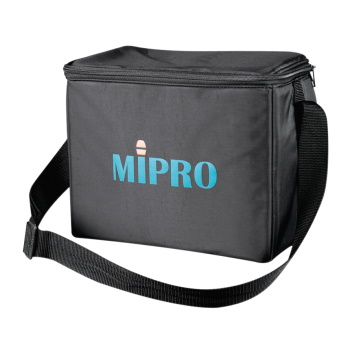

    SC-100

    Tripod Stand
