VD-0025 UHD+



    VD-0025 UHD+

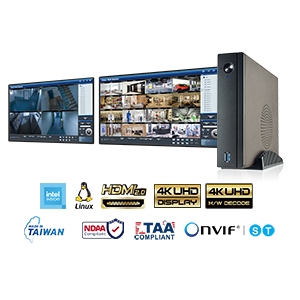

    The World’s First 4K Hardware Decode, 4K Display and Linux-embedded Video Wall Station

    VD-0025 UHD+ allows you to easily build video wall as secondary control room to solidly guard your region in crystal-clear 4K UHD (3840 x 2160) display resolution with H.264 IP cameras.


25 CH
____________________
Channels






DIGIEVER Video Wall Station is the world first 4K hardware decode, 4K display and H.264 supported Linux-embedded video wall station that allows users to easily build video wall as secondary control room to solidly guard your region in crystal-clear 4K UHD (3840 x 2160) display resolution with H.264 IP cameras. Users can monitor up to 25 channels liveview on local display via HDMI 2.0 video output without installing extra computer. In addition, its dual HDMI solution lets you monitor two monitors in either same display mode (Mirror Display) or different display modes (Dual Display). Once security personnels notice event notification from highlight video window and video pop-out window on liveview page, they can quickly check event situation via multi-channel video playback, which can largely minimize the injury, loss or damage.



Key Features

  • Support 4K UHD/ Full HD/ XGA display
  • Support up to 12 megapixel IP camera
  • Up to 25-CH real-time liveview performance
  • Support 60FPS IP camera monitoring
  • Dual-stream optimization for better video quality

    • CPU
  • Intel Quad-core High Performance Processor
    		•
    Memory
  • 8 GB Flash (EMMC)
  • 4 GB DDR 4 memory
    		•
    LAN Port
  • 2.5 Gigabit RJ-45 Ethernet port x 2
    		•
    LED Indicators
  • Power
    		•
    USB Connector
  • Front: 1 x USB 3.2 Gen 2x1
  • Rear: 2 x USB 3.2 Gen 2x1
    		•
    Buttons
  • Power
    		•
    Output Connector
  • HDMI 2.0b x 2
    		•
    Form Factor
  • Compact desktop
    		•
    Operation Environment
  • Temperature 0~40˚C (32˚F~104˚F)
  • Humidity 5~95% R.H.
    		•
    Power Supply
  • External power adaptor, 65W
  • Input power voltage: 100V to 240V AC
    		•
    Power Consumption
  • Operation: 13.8W~20W
    		•
    H/ W Dimensions
  • 177 (H) x 44 (W) x 219 (D) mm
  • 6.96 (H) x 1.73 (W) x 8.62 (D) inch
    		•
    Color Box Dimensions
  • 141 (H) x 327 (W) x 301 (D) mm
  • 5.55 (H) x 12.87 (W) x11.85 (D) inch
    		•
    Carton Dimensions
  • 317 (H) x 360 (W) x 326 (D) mm
  • 124.8 (H) x 141.73 (W) x 128.35 (D) inch
    		•
    Color Box Shipping Weight
  • Net Weight (kg/PC): 1.71
  • Gross Weight (kg/PC): 2.97
  • Gross Weight (kg/CTN): 5.93
    		•
    Local Display
    Max. Channel Support
  • 25
    		•
    Display Mode
  • 1/ 3/ 4/ 5/ 8/ 9/ 10/ 12/ 16/ 20/ 25/ 30/ 36/ 42/ 49/ 56/ 64 & 5+1/ 12+1-channel & sequential and full screen display modes
    		•
    Max. Resolution Support
  • Resolution up to 12 megapixel
    		•
    Local Display Resolution
  • HDMI 2.0b display port: 3840 x 2160 (4K UHD), 1920 x 1080 (Full HD), 1024 x 768 (XGA)
  • HDMI 2.0b display port: 3840 x 2160 (4K UHD), 1920 x 1080 (Full HD), 1024 x 768 (XGA)
    • Note: Dual 4K display supports in mirror display mode.
    H/W Decode Max. FPS in Single Page
  • In 3840 x 2160 (4K) Display:
    • 4K (8MP): 60 FPS
    • Full HD: 360 FPS
    • HD/D1: 480 FPS
    • CIF: 540 FPS
  • In 1920 x 1080 (Full HD) Display:
    • 4K (8MP): 60 FPS
    • Full HD/ HD/ D1: 480 FPS
    • CIF: 540 FPS
    		•
    Max. FPS per Channel
  • 60 fps
    		•
    Layout Mode
  • Default layout, Group layout
    		•
    Advanced Display
  • Dual Display: display different liveview display modes on two monitors (Full HD display)
  • Mirror Display: display same liveview display mode on two monitors (4K/Full HD/XGA display)
    		•
    Monitoring Control
  • PTZ control, digital zoom, optical zoom, full screen display, video snapshot and preset position
    		•
    System Configuration
  • Yes, local and remote PC configuration
    		•
    Display Streams from NVR Relay
  • Yes, when camera is added from NVR
    		•
    Audio Support
  • Yes
    		•
    Camera Dewarp
  • Yes
    		•
    Event Notification
  • Yes, when camera is added from NVR (video pop-out window and highlight video window)
    		•
    Multi-channel Playback
    Display Mode
  • Single/ Quad Display mode
    		•
    Playback Control
  • Play, Pause, Fast forward, Rewind, Slow Motion, Frame By Frame, Snapshot, Video Export
    		•
    Security Management
    User Privilege Management
  • User can be assigned for different levels of privilege
    		•
    Log System
  • Hardware log, System log, current user log and historical user log
    		•
    Access Control
  • Specify IP address or network segment for the white and black list
    		•
    Two LAN Port Applications
  • Yes, including shared IP, separated IP and link aggregation
    		•
    Screen-off Schedule
  • Yes. Up to 5 time periods per day
    		•
    Operating System
  • Linux-embedded
    		•
    Network Service
    Protocol Support
  • HTTP, TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, NTP
    		•
    Suggested PC Requirement
    Operating System
  • Microsoft® Windows® 10/11, macOS
    		•
    Web Browser for Login
  • Microsoft® Internet Explorer 10.0 or above, Chrome 56.0.29 or above, Firefox 51.0.1 or above, Opera 43.0.2 or above, Safari 16.4.1 or above
    		•
    Suggested Switch Requirement
    Switch
  • Gigabit switch is highly recommended
    		•
    Remote Controller Features(optional)
    Remote Controller
  • Support display mode, full screen, digital zoom in/out, mute/sound, PTZ control, sequential, snapshot, live view
    		•
