NV9311P

Overview

VIVOTEK’s NV9311P is a mobile NVR designed for transportation surveillance and provides 1080p 8-CH real-time live display with recording efficiency using advanced H.265 video compression technology. The 8x 802.3at/af PoE ports provide network connections and power to the network cameras. With a rugged EN50155 and MIL-STD-810G compliant design, the mobile NVR will provide durable and robust protection for all types of vehicle movement.

The NV9311P supports built-in G-sensor and GNSS module to provide information such as G-sensor events and speed events, as well as offering multiple network interfaces such as LAN, WiFi and LTE for different network connection requirements. By implementing VIVOTEK’s VAST 2 software, GPS tracking locations are instantly displayed on Google Maps. Live videos can also be displayed remotely, allowing for instant access for complete safety control.

When installed in vehicles, the mobile NVR supports system power delay on/off and low voltage protection for better system reliability. The NVR also features a wide range of power inputs, an aluminum die-case chassis, a built-in heater, surge protection, and protection from shock and vibration. With an easy-to-install design as well as simple operation and rich features, the NV9311P provides more possibilities for tomorrow's in-vehicle security applications.

Key Features

H.265 1080p 8-CH Real-time Live Display

VIVOTEK's Smart Stream II to Optimize Bandwidth Efficiency

4K Display for Clear and Detailed Monitoring

LAN/Wi-Fi/LTE Multiple Network Connections

802.3at/af Compliant PoE port x8 with Management Efficiency

Built-in G-sensor for Vehicle Vibration Alerts

GPS Tracking on Google Maps with VAST 2 VMS

Delay Power Startup/Shutdown and Low Voltage Protection

Built-in Heater for Extreme Temperatures (-40°C ~ 55°C)

EN50155/MIL-STD-810G certified to Ensure Reliability during Vehicle Travel

H.265 1080P Real-time Live Display

Featuring a powerful multi-core SoC to provide 1080p (1920x1080) real-time live display so that users will not miss any information during monitoring, the NVRs also provide H.265 and VIVOTEK’s Smart Stream technology to help greatly save recording capacity than regular H.264 systems.

WiFi and LTE Connection Options

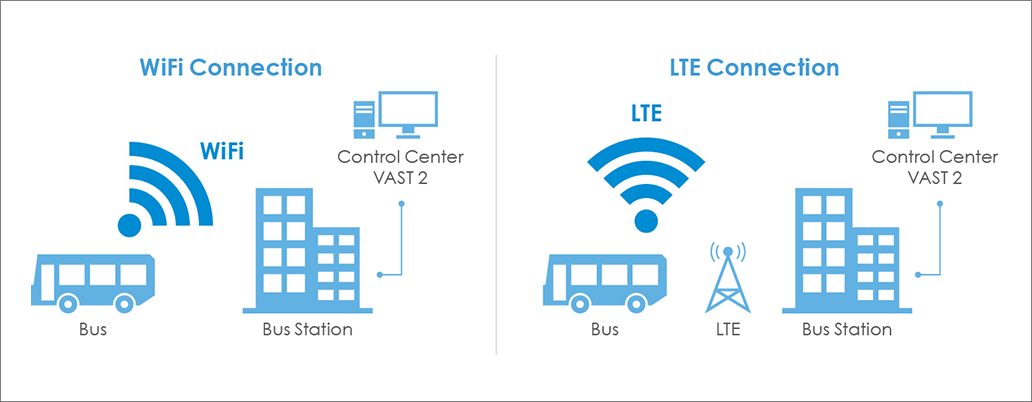

The video stream and data of the Mobile NVRs will be transmitted to the control center remotely for monitoring via WiFi 802.11a/b/g/n/ac or LTE connection.

Built-in G-sensor

Built-in G-sensor for drive safety control. Users can set the sensitivity level and the G-sensor will be triggered in the event of an accident or when extreme vibrations happen.

Fisheye Dewarp

VIVOTEK’s NVR offers both LiveView and Playback modes for one fisheye network camera simultaneously. They also provide multiple fisheye de-warp display modes, including 1O, 1P, 1R, 1O3R, 1O8R, allowing users to monitor any angle, or to enjoy precise detailed images for a total surveillance experience.

GPS Tracking on Google Maps

The embedded GNSS receiver supports GPS, GALILEO and GLONASS systems for different area applications. By remotely using VAST 2 VMS, it allows users to have both live video display and GPS tracking from Google Maps.

Rugged Design for Mobile Surveillance

Device
Model	NV9311P(RJ45) NV9311P(M12)
OS	Embedded Linux
Watchdog	Hardware + Software
Power Restoration	System Restart Automatically after Power Recovery
Local Display
LiveView Display	8 Channels Multi-Layout Display: 1x1, 3V, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6
Video Output	HDMI x1, VGA x1
Display Resolution	3840x2160, 1920x1080, 1280x720
Camera Position	Change the viewcell position on the Live View screens
Stream Application	Constant\Auto Adaptive Stream
Monitor Enhancement	OSD display (NVR), OSD display (camera), camera information, remote I/O control, event notification, aspect ratio
Fisheye Dewarp	1O, 1P, 1R, 1O3R, 1O8R
PTZ Operation	Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control
Video
Video Format	H.265, H.264, MJPEG
Graphic Decoder	Hardware decoding
Decoding Resolution	H.265: up to 4096x4096 H.264: up to 8192x8192
Decoding Capability	H.265/H.264: 3840x2160 @ 120 fps (4-CH) 1920x1080 @ 480 fps (16-CH)
Audio
Audio Format	G.711, G.726
Audio In/Out	Mic in (reserved) / Line out x 1
Record
Recording Time (sec.)	Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300)
Recording Stream	Single
Recording Throughput	64 Mbps
Recording Mode	Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
Recording Setting	Recycle (unit: Day)
Watermark	Supported
Storage & Backup
HDD Devices	Internal x1 (2.5" HDD/SSD) *HDD is purchased by separately.
HDD Max. Capacity	*Please refer to recommended HDD list on the VIVOTEK website.
Disk Management	Create, Format and Remove Disk HDD S.M.A.R.T.
SD Card	SD card slot x1 (reserved)
Schedule Backup	FTP
Playback
Playback Display	4 Channels Multi-Layout Display: 1x1, 2x2, 1P+3, 1V+3
Playback Control	Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
Video Search	By calendar, date/time, and alarm
Thumbnail Explorer (Storyboard)	Listing the thumbnail of recorded video (Max. 2-CH)
Snapshot	JPEG
Video Clip Export	EXE
Network
Ethernet	NV9311P(RJ45): 10/100/1000Mbps Ethernet (RJ-45) x 1 NV9311P(M12): 10/100/1000Mbps Ethernet (M12) x 1
Video Throughput for Remote Client	96 Mbps
WiFi	IEEE802.11a/b/g/n/ac 2T2R (optional)
Mobile Network	LTE (optional)
PoE	Total Max. 64W NV9311P(RJ45): 802.3at/af compliant PoE ports x 8 (RJ45) NV9311P(M12): 802.3at/af compliant PoE ports x 8 (M12) * DO NOT suggest connecting any non-PD device with this Mobile NVR PoE port in order to avoid potential risk.
PoE Management	Supported
Protocols	IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
External Interface
USB	Front: 2 (USB 2.0) Back: 1 (USB 2.0)
Alarm In	8
Alarm Out	4
Audio	Mic in(reserved) / Line out x 1
Antenna Interface	GPS x1, WiFi x2, LTE x2
RS232	1 Port (Reserved)
System
Camera Integration	ONVIF core spec 2.2 or above (request by project)
GNSS	GPS/GALILEO/GLONASS supported
G-sensor	Supported
Event	Camera: motion detection, PIR detection, tampering detection, DI/DO, disconnection System: storage abnormal, storage full, DI/DO, GPS disconnected, GPS speed, G-sensor
Event Action	Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS
User Management	User level: administrator, regular user
Log	System, recording, user, error
Date & Time	Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Remote Client
Software AP	Shepherd, VAST 2
Mobile/Tablet App	iViewer (Android & iOS)
Web Browser	Internet Explorer 10 (32 bit) or later/ Windows
General
Power Input	DC 12V~48V ±10%
Power Management	Programmable delay on/off relative to ignition or other switched voltage
Surge Protection	Supported
Power Consumption	Max. 149 W Without HDD/SSD and PoE: Max. 15 W (Heater off), Max. 45 W (Heater on)
Dimensions	284 (W) x 230 (D) x 90 (H) mm
Weight	4.06 kg (without HDD)
Operating Temperature	-40°C ~ 55°C (-40°F ~ 131°F) Maximum (intermittent): 70 °C (158 °F)
Humidity	0 ~ 95%
Safety Certifications	CE, FCC, VCCI, C-Tick, EN50155, E-mark, EN61373, UL, CB, EN45545, EN50121-3-2/EN50121-4, MIL-STD-810G
Warranty	36 months

Datasheets	Download
QIG	Download
QIG (M12)	Download
User's Manuals	Download

Dimension

Recommended HDD List

* WD (Western Digital) is one of VIVOTEK's SIA (Solution Integration Alliance) partners for developing customized features on an open platform. WD provides well maintain and repair service as VIVOTEK always do. For further direct service of WD HDD product, please refer to WD Global Warranty website.
