Overview

VIVOTEK’s IE9111-O or “AI-BOX” is an edge computing device that employs the Qualcomm QCS605 chip. It is running on Azena OS, which is an operating system based on the Android Open Source Project. It can integrate network cameras through the RTSP protocol to obtain images for analysis and calculation for AI-related applications. With AI-BOX, user can upgrade their existing surveillance devices into an AIoT intelligent system.

Since IE9111-O is a Driven by OSSA device, user can download and install Apps on IE9111-O via the Azena App Store, and empowers network cameras with various intelligent video content analysis applications such as facial recognition, license plate recognition, and behavior detection. User can install and operate multiple Apps on IE9111-O at once for more versatile, intelligent, and effective applications.

The IE9111-O is equipped with Octa-Core SoC based on the Qualcomm Vision Intelligence Platform, AI technology, and the neural processing engine of the Adreno 615 GPU, and Hexagon DSP. It supports hardware acceleration for deep learning, powerful visual computing and edge computing performance that can optimize AI image processing capabilities.

Key Features

  • Powered by Qualcomm QCS605 SoC with Built-in AI Engine
  • Powerful Computing for Video Processing and Machine Learning
  • Driven by OSSA, Running on Azena OS (based on Android Open Source Project)
  • Supports a Variety of VCA Solutions through Azena Apps
  • Enables Any Type of Network Camera to Act as AIoT Device
  • H.265 Compression Technology
  • RJ-45 Connectors for PoE Connection
  • Digital Input*2, Digital Output *2



    • Driven by OSSA
      Azena OS
      NDAA Compliance
    System Information
    Model
  • IE9111-O
  • SoC
  • Qualcomm QCS605
  • Kryo™ 300 CPU, Octa-core CPU (2x2.5GHz, 6x1.7Ghz)
  • GPU
  • Qualcomm® Adreno™ 615 GPU
  • API Support: OpenGL® ES 3.2, OpenCL
  • AI Engine
  • NPU: Qualcomm® Neural Processing SDK, ONNX, TensorFlow, Android NN, Caffe, 2.1 TOPS@1w, Caffe2
  • AIE DSP: Qualcomm® Hexagon™ 685 DSP
  • AIE GPU: Qualcomm® Adreno™ 615 GPU
  • Decoding
  • H.264/H.265: 30 fps @ 3840 x 2160 (4K)
  • Flash
  • 16 GB
  • RAM
  • 4 GB
  • OS
  • Azena OS – Android 8.1
  • Channel
  • 1-CH/RTSP Streaming
  • Network
    Protocols
  • DHCP, DNS, HTTP, HTTPS, IPv4, IPv6,RTSP/RTP/RTCP, NTP, TCP/IP
  • Interface
  • RJ-45 or M12 10 Base-T/100 Base-TX/1000 Base-T Ethernet (1000 Base-T for RJ-45 only)
  • Solution Integration
    VCA
  • Supported by Azena APPs
  • Embedded App
  • iNSIGHT Event Adapter
  • Event Protocol
  • MQTT, REST, HTTP GET/POST, ONVIF Event/Metadata
  • General
    Connectors
  • RJ-45 or M12 cable connector for 10/100/1000 Mbps Network/PoE connection*1(1000Mbps for RJ-45 only)
  • Digital input*2 (Dry contact)
  • Digital output*2 (Dry contact)
  • LED Indicator
  • System power and status indicator
  • Power Input
  • IEEE 802.3af Class3 PoE
  • Power Consumption
  • Max. 12 W
  • Dimensions
  • 123 x 74 x 30 mm
  • Weight
  • 230 g
  • Safety Certifications
  • CE, FCC Class A, EN50155, EN45545-2, IEC60571, UL, CB
  • Operating Temperature
  • -25°C ~ 55°C (-13°F~131°F)
  • Warranty
  • 36 months
  • System Requirements
    Web Browser
  • Windows: Mozilla Firefox, Chrome, Microsoft Edge
  • Mac OS: Safari
  • Linux: Chrome
  • Datasheets Download
    QIG Download
    Manual Download

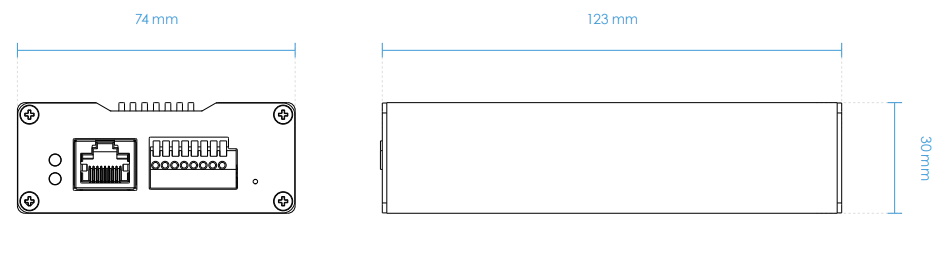

    Dimension
